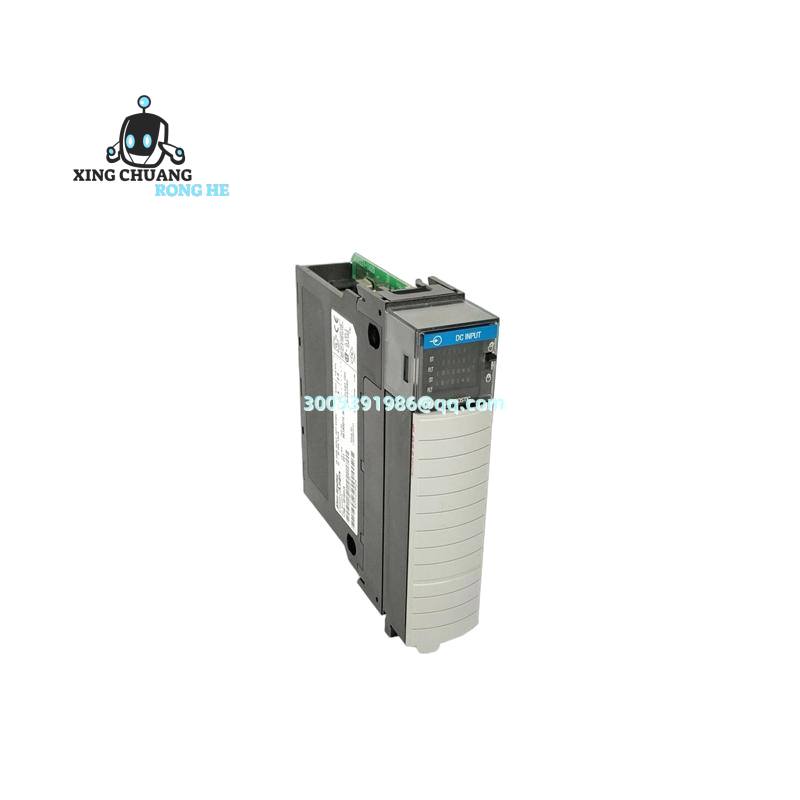

A-B 1756-IB16D ControlLogix 16-Point Digital Input Module

Allen-Bradley 1756-IB16D: The Workhorse Digital Input Module You Actually Trust

When your production line hinges on catching every sensor signal—like conveyor stoppages or safety gate statuses—the 1756-IB16D is the module plant engineers reach for when they can’t afford flaky inputs. We’ve seen these hold up in steel mills where voltage spikes fry cheaper gear, quietly logging 16 critical points from bottle fillers to robotic weld cells. Honestly, if your ControlLogix system needs inputs that won’t ghost you during midnight shifts, this is the baseline.

Last month, a Midwest automotive plant called us frantic—three shifts down because their old input modules kept misreading hydraulic press sensors. Swapped in the 1756-IB16D, and it’s been smooth sailing. You’ll typically pair this with modules like the 1756-OB16E for outputs or 1756-IF16 analog cards when building out ControlLogix racks. We move tons for food processing lines too (where washdowns murder lesser gear), and honestly? It’s the go-to for anyone running legacy SLC-500 systems migrating to ControlLogix. If your setup uses Studio 5000 or even older RSLogix 5000, this slots right in—no headaches.

Here’s what actually matters in the field: that individual channel isolation isn’t just marketing fluff. When a forklift bumps a sensor cable in your warehouse (and it will), only one input glitches—not the whole module. Saw a paper mill run these for 8 years straight with zero failures, even with 480V drives kicking up noise nearby. They’re not flashy, but the 5ms response time? Critical for emergency stops. And yeah, the 24V backplane power means one less external supply cluttering your panel. Personally, I’d skip the redundant pairs unless you’re in nuclear—this thing’s MTBF is 1.2 million hours, and we’ve had customers pull these off decommissioned lines still working fine. Just don’t try using it for 48V systems; learned that the hard way with a frustrated bottling plant guy last winter.
