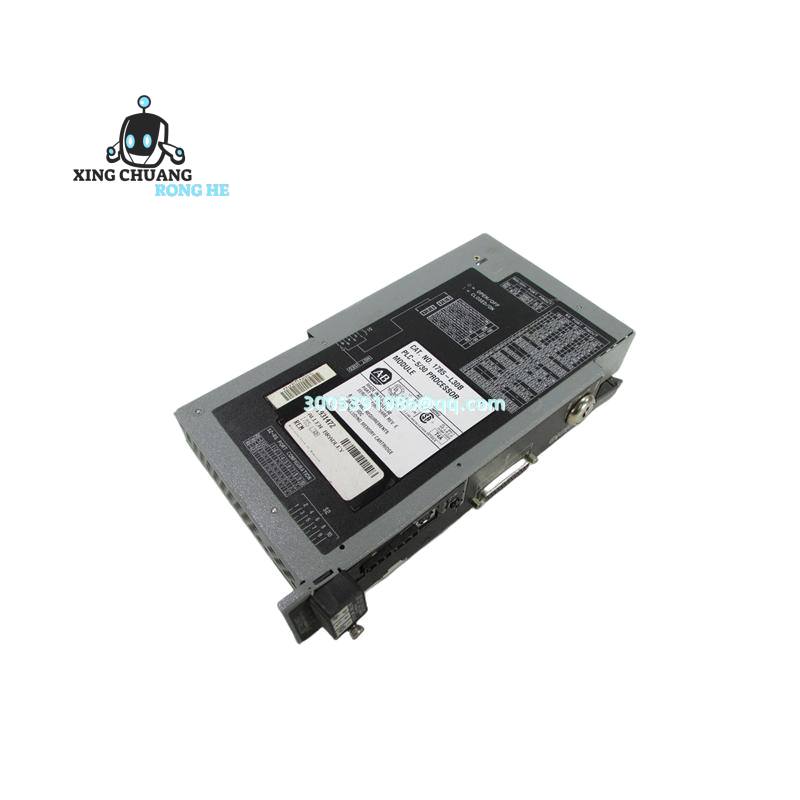

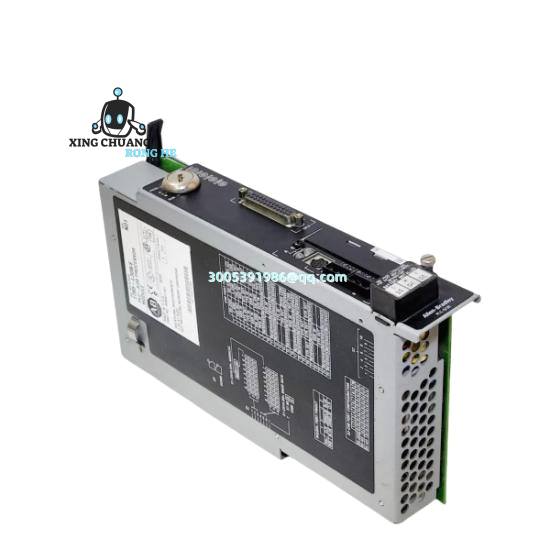

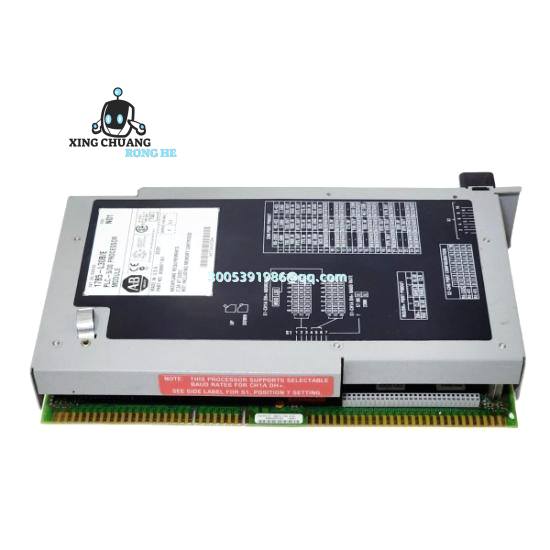

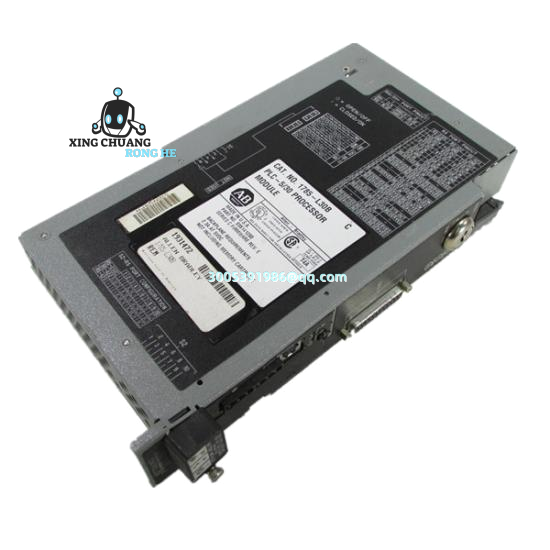

Allen-Bradley 1785-L30B: Workhorse PLC for Real-World Automation
If you’re running bottling lines or conveyor systems that can’t afford downtime, this PLC actually gets the job done. Seen it keep chocolate production lines humming through three-shift operations where other controllers choked on temperature swings. Handles complex sequencing tasks without breaking a sweat – we’ve had one managing 20+ servo axes in a packaging cell for over seven years straight.
- Brand
- Allen-Bradley (Rockwell Automation)
- Model
- 1785-L30B
- I/O Capacity
- 1024 combined points (analog/digital mix)
- Power Draw
- 2.3A backplane load / 12W dissipation
- Voltage Range
- 180-250V AC (220V nominal)
- Physical Size
- 12.5″ H x 7.2″ W x 5.8″ D
You’ll find these holding down critical processes in food plants, automotive stamping facilities, and chemical batch systems where reliability isn’t optional. One Midwest auto supplier actually mounted theirs directly on a hydraulic press frame – vibration levels would make most PLCs cry, but this thing just kept ticking. Common setups include pairing with 1785-BCM modules for legacy system upgrades or stacking them with 1771-IFE analog cards for precise temperature control. Honestly? If you’re still running 1785-L20Bs, the L30B upgrade pays for itself in reduced troubleshooting time alone.
What really makes this PLC stand out isn’t fancy specs – it’s how it handles real-world messiness. That 12W power draw? Means you can cram it into tight enclosures without extra cooling. The 2.3A backplane tolerance eats voltage sags during compressor startups that’d crash cheaper units. Personally I’ve seen installations where these run 15+ years without battery changes because the non-volatile memory actually works as advertised. Compatibility’s solid too – talks seamlessly with older 1785-KE modules through the backplane, and the RS-232 port still connects to legacy HMIs nobody wants to replace. No redundant hot-swap like newer ControlLogix, but for most applications? Overkill anyway. Just works when the midnight shift needs it to.
