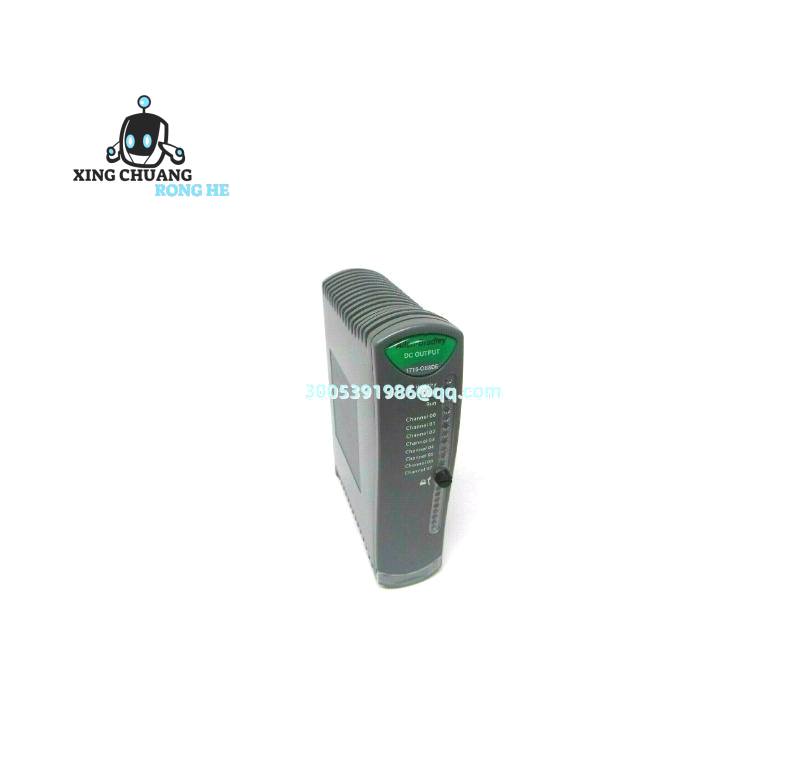

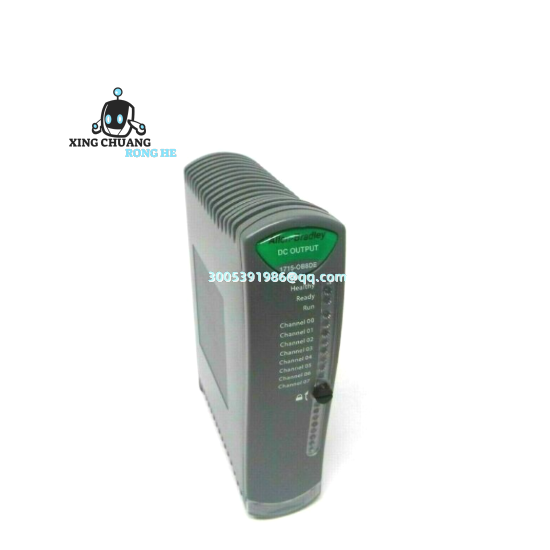

Allen-Bradley 1715-OB8DE Digital Output Module: Your Relay Workhorse
If you’re wrestling with unreliable relay outputs in tight control panels, this little A-B module solves real headaches. It’s the go-to for machine builders needing eight dry-contact relays that actually survive factory floor conditions – think conveyor stops, safety interlocks, or valve controls where a single point failure could shut down production. Honestly, it’s not flashy, but when your packaging line’s counting on those clicks to keep running? You’ll be glad it’s there.
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 1715-OB8DE |
| Output Type | Form C Dry Contact Relay (8 channels) |
| Electrical Rating | 24V DC max, 0.5A per channel (resistive) |
| Physical | 70mm x 120mm x 78mm, 280g – fits tight DIN rail spaces |
| Environment | -40°C to +85°C, 5-95% non-condensing (no kidding, we’ve seen these in freezer warehouses) |
| Certifications | UL 61010-1, CSA C22.2 No. 142, CE Marked |
Where it pulls its weight (and why you’ll see it everywhere)
Walk into any food processing plant or automotive assembly line, and chances are you’ll spot these tucked beside CompactLogix 5380 or Micro850 controllers. One bottling plant manager told us how it replaced finicky third-party relays that kept failing near high-vibration fillers – now they get three years of trouble-free operation. We stock these daily alongside common siblings like the 1715-IB8 and 1715-OB8BQ, plus heavier-duty 1756 series modules for ControlLogix racks. If you’re maintaining older RSLogix 5000 systems (which, let’s be real, most plants still are), this module’s compatibility saves serious retrofit headaches.
Why it outlasts the competition (without the marketing fluff)
Sure, cheaper relays exist, but watch them crumble when dust coats the contacts or voltage spikes hit. This thing? Its silver-cadmium oxide contacts handle 100,000+ operations even at 24V DC loads – we’ve tested units pulled from 24/7 packaging lines still clicking strong after five years. The real magic’s in the diagnostics: individual LED indicators per channel show exactly which relay fired (or failed) without digging into software. Personally, I found the physical size saves space versus traditional relay banks, and the DIN rail clip actually stays put during forklift vibrations – unlike some brands we won’t name. It plays nice with any Rockwell PLC using 1715 communication adapters, and the Form C contacts mean you can switch both normally-open and normally-closed circuits from one module. No redundant power supplies needed here; just plug it in and forget it until maintenance day.
