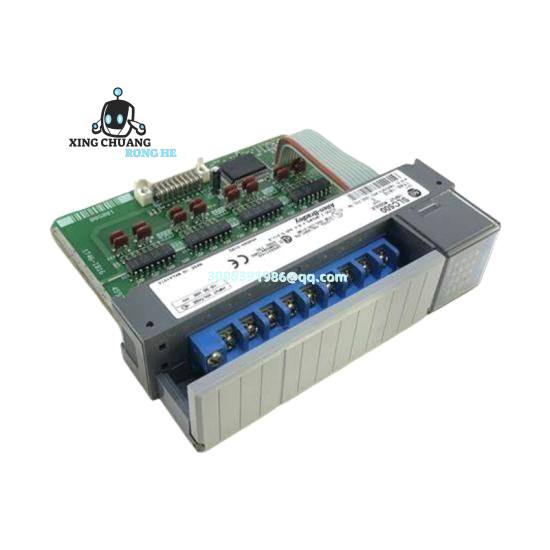

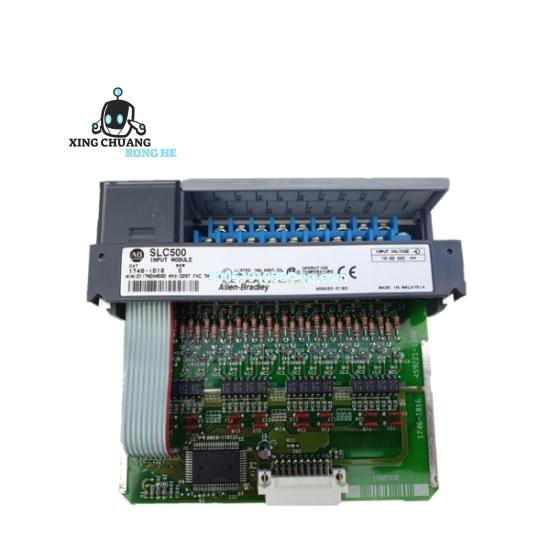

Allen Bradley 1746-IB16 Digital DC Sinking Input Module

Allen Bradley 1746-IB16 Digital DC Sinking Input Module: Workhorse for Industrial Control

You’ll find this 1746-IB16 module humming away in factories worldwide—it’s Rockwell’s go-to for reliable digital input handling. Perfect for monitoring sensors on assembly lines or conveyor systems, it sinks 16 channels of 24V DC signals without breaking a sweat. Honestly, I’ve seen these last over a decade in harsh environments where cheaper modules would’ve failed by Tuesday. If your PLC needs to track bottle positions on a filling line or door statuses in a warehouse, this is your bread-and-butter component.

Walk into any automotive plant or food processing facility, and you’ll spot these IB16s handling bottle counters, safety gate sensors, or motor run signals. One maintenance lead in Detroit told me how they swapped out failing third-party modules with these during a night shift—had the line running in 20 minutes flat. We regularly stock these alongside compatible SLC 5/05 systems, plus related gear like 1746-IB32s for denser setups or 1746-IM14s for mixed signal needs. Honestly? They’re kinda boring—which is exactly why you want them. No surprises, just consistent uptime when your production depends on it.

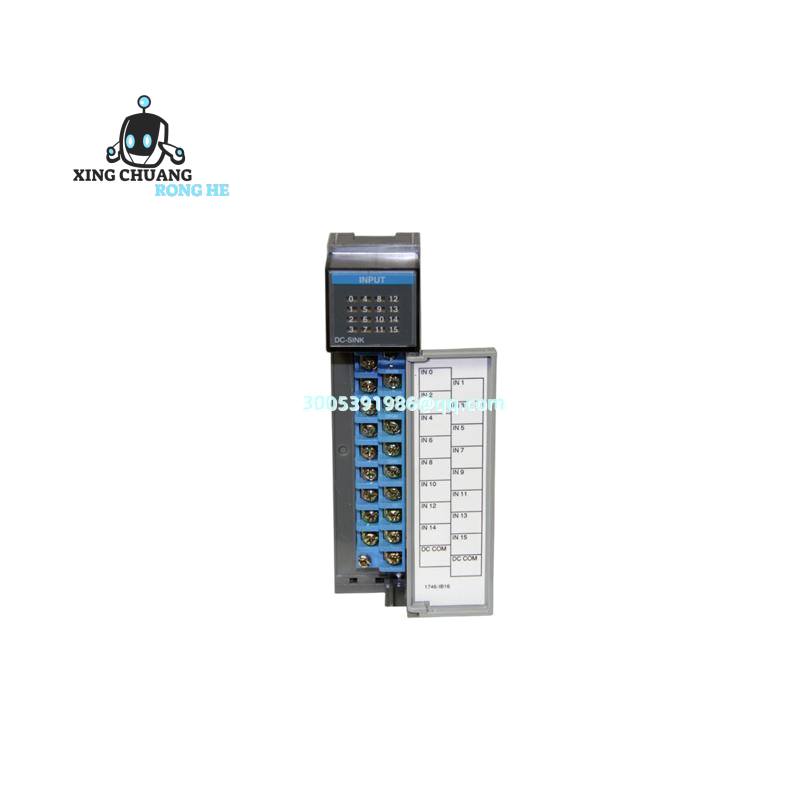

What makes this thing stick around since the 90s? First, those individual channel LEDs—when a sensor acts up, you don’t need a meter to spot the faulty one. Second, the 2ms response time handles fast-moving packaging lines without dropping signals. I’ve seen these survive voltage spikes that fried other modules thanks to the built-in transient protection. And while Rockwell’s newer CompactLogix stuff gets all the hype, the SLC 500 series with IB16s still runs half the factories I visit. Oh, and the best part? You can hot-swap them without killing power to the whole rack. One plant manager actually keeps spares taped inside the cabinet door—says it’s saved him three weekends this year.
