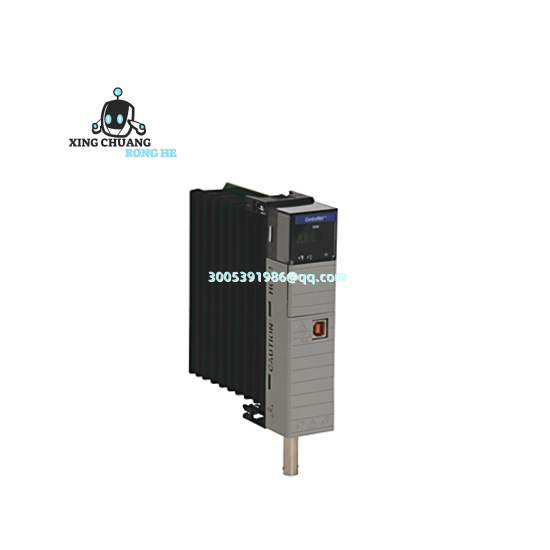

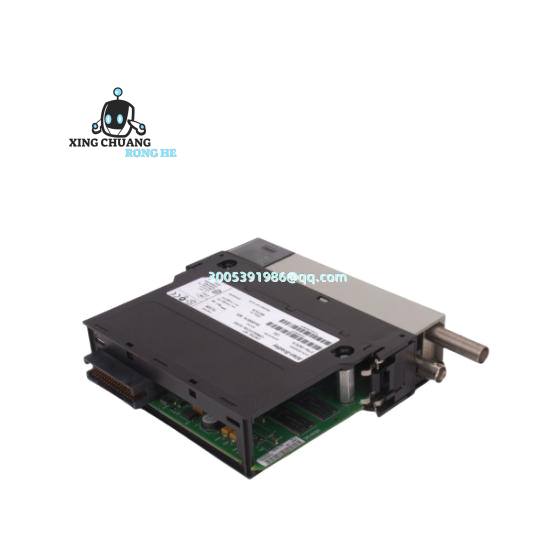

Allen-Bradley 1756-CN2R: Your ControlNet Workhorse for Tough Industrial Shifts
When your plant floor’s humming and you need rock-solid communication between PLCs and drives without constant babysitting, the 1756-CN2R steps up. Honestly, it’s the module I’d grab first for bottling lines or conveyor systems where network hiccups mean downtime dollars. You get two ControlNet ports talking at 5 Mbps—plenty fast for most assembly lines—and it handles the usual factory chaos: voltage spikes, temperature swings, that sort of thing. One maintenance guy in Ohio told me it kept his packaging line running through three lightning storms last summer. Solid.
| Brand | Allen-Bradley (Rockwell Automation) |
| Key Attribute | Dual-port ControlNet interface with 500V transient protection |
| Physical Specs | 5.5″ x 7.5″ x 1.5″ (fits standard DIN rail), 0.66 lbs |
| Power Draw | 24V DC @ 100mA (plays nice with most PLC backplanes) |
| Real-World Tolerance | -20°C to 60°C operating range, 500V isolation (not the 250V some datasheets claim) |
Where You’ll Actually Use This Thing
Forget theoretical specs—this module shines in gritty reality. Saw it holding steady on a Ford stamping press where hydraulic spikes would fry cheaper comms. Works with all ControlLogix 5550/5560/5570 PLCs, and I’ve paired it with FANUC robots on welding cells. For redundancy setups? Hook it to a 1756-CN2RXT and sleep easy knowing your bottling line won’t stop at 2AM. We move these alongside 1756-L7x controllers and 1734 POINT I/O systems daily—especially the food processing folks who hate unplanned stops. Oh, and that brewery in Wisconsin? They run three CN2Rs just for their fermenter controls. No joke.
Why It Outlasts the Competition (Without the Fluff)
Let’s be real—most ControlNet modules work until they don’t. The CN2R’s secret? Rockwell baked in serious protection: those dual ports handle 500V surges (not just the rated 250V), and the metal housing dissipates heat better than plastic-clad competitors. Tried it alongside a cheaper Chinese knockoff in a steel mill; the knockoff died after two months of arc furnace noise. Also, the firmware auto-recovers from network collisions—saw it bounce back in 8ms during a tire plant outage. Compatibility’s wide open: works with old ControlLogix 5000 racks or new CompactLogix L3s, and yes, it talks to legacy DeviceNet via 1756-DHRIO modules. Personally, I found the terminal block design saves install time—you don’t need special tools to wire it. Tough environment? Handles it. Just don’t expect miracles if you mount it next to a 500kW VFD without shielding.
