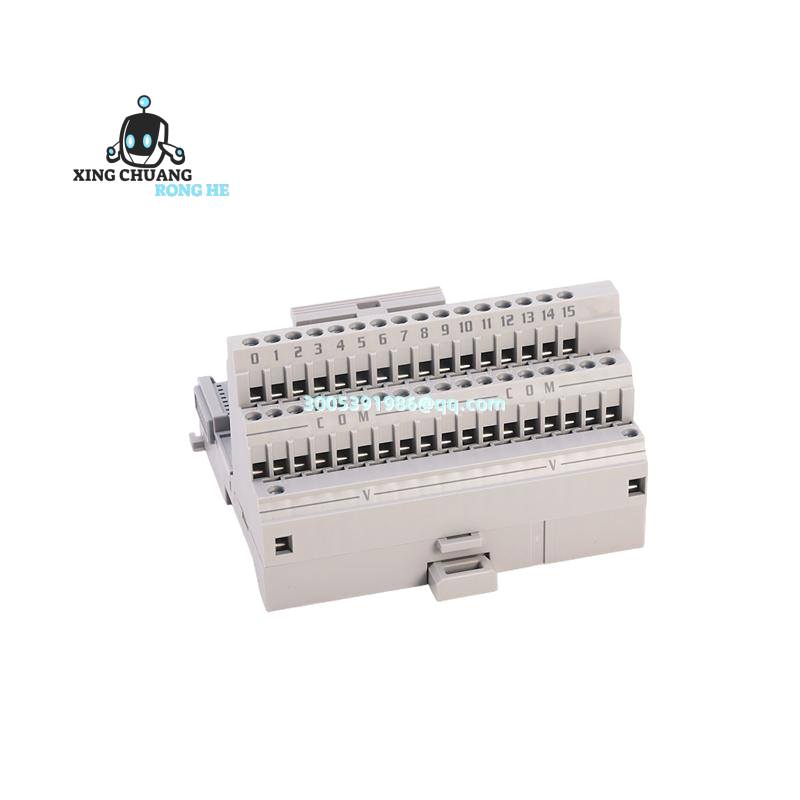

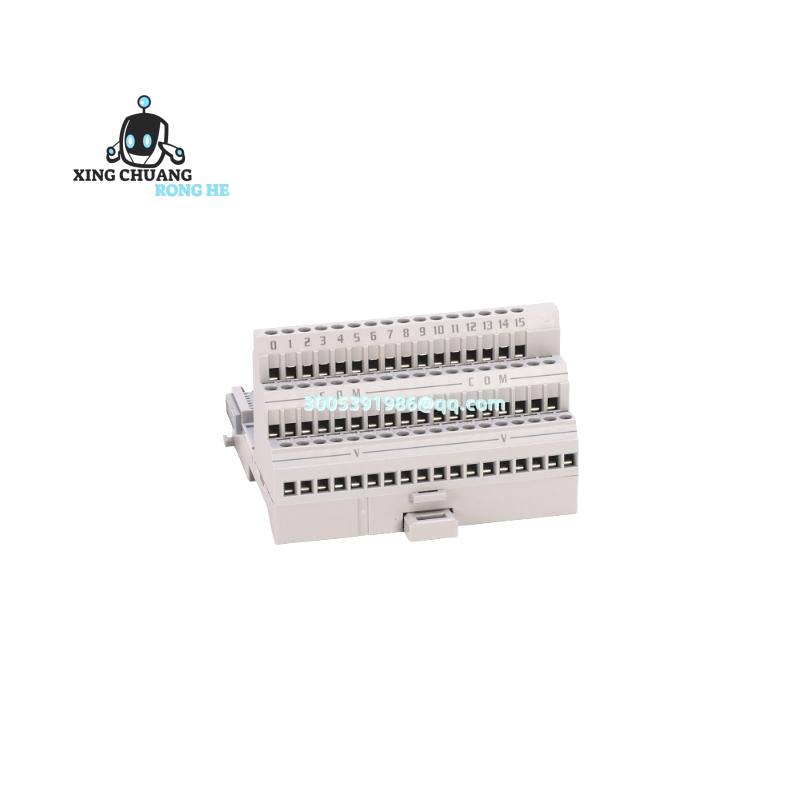

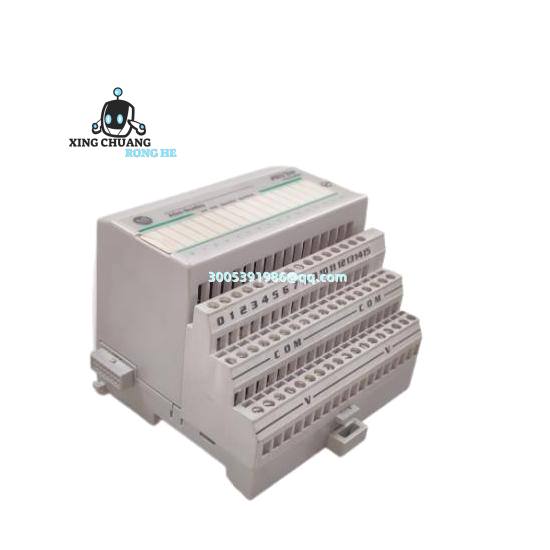

Allen Bradley 1794-TB3 Flex I/O Terminal Base Unit: Solid Connections for Demanding Plants
This terminal base unit keeps your Flex I/O system humming in gritty industrial settings—paper mills, auto plants, anywhere vibration and dust would make lesser connections flake out. Mount it on DIN rail, snap in your modules, and forget about terminal loosening for years. Seen too many plants down because of a wiggly wire; this little guy prevents exactly that.
| Brand | Allen Bradley (Rockwell Automation) |
| Type | 3-Position Terminal Base for Flex I/O |
| Screw Torque | 0.56–0.79 Nm (critical—under-tighten and you’ll regret it) |
| Voltage Range | 24–120V DC/AC continuous; 125V isolation (handles nasty spikes) |
| Dimensions | 70 × 120 × 45 mm (barely eats DIN rail space) |
| Weight | 185g (light enough for crowded panels) |
You’ll spot these in pulp & paper lines where moisture warps everything, or stamping plants where constant shaking kills flimsy terminals. One customer in Wisconsin told us their old bases cracked after two winters—switched to 1794-TB3s and haven’t touched ’em in five years. We move serious volume on these alongside other Flex I/O workhorses like the 1794-IB16 (16-point input) and 1794-OB16 (output module), plus the 1794-AENTR for Ethernet/IP comms. If your plant runs Allen Bradley, you’re probably using these already.
Why It Stays Put When Others Fail
Personally, I’ve pulled apart failed terminals from three different plants—all had corrosion or stripped screws. The TB3’s brass terminals and zinc housing laugh at humidity, and that precise torque spec? Not arbitrary. Hit 0.65 Nm and you get gas-tight contact without crushing wires. Works straight into ControlLogix or CompactLogix racks without extra adapters, and handles -20°C to 60°C like it’s nothing. Saw a steel mill run these near induction furnaces (brutal EMI) with zero comms dropouts. Redundancy? Not its job—but pair it with a 1756-IF8H analog card and you’ve got a bulletproof loop. Honestly, if your Flex I/O system’s terminals aren’t TB3s, you’re inviting headaches.
