Omron CJ1W-PD025-SF Power Supply Module: Industrial-Grade Reliability for Critical Systems

Don’t let the “SF” suffix fool you—this isn’t some diagnostic tool but Omron’s workhorse 24V DC power supply for CJ1M/CJ2M PLC systems. We’ve seen these quietly powering conveyor lines in Midwest auto plants and keeping bottling lines humming through summer brownouts. It’s the module you forget about until you realize it’s been running flawlessly for eight years straight. Handles voltage dips down to 85V AC without breaking a sweat, which matters when your facility’s on an old grid.

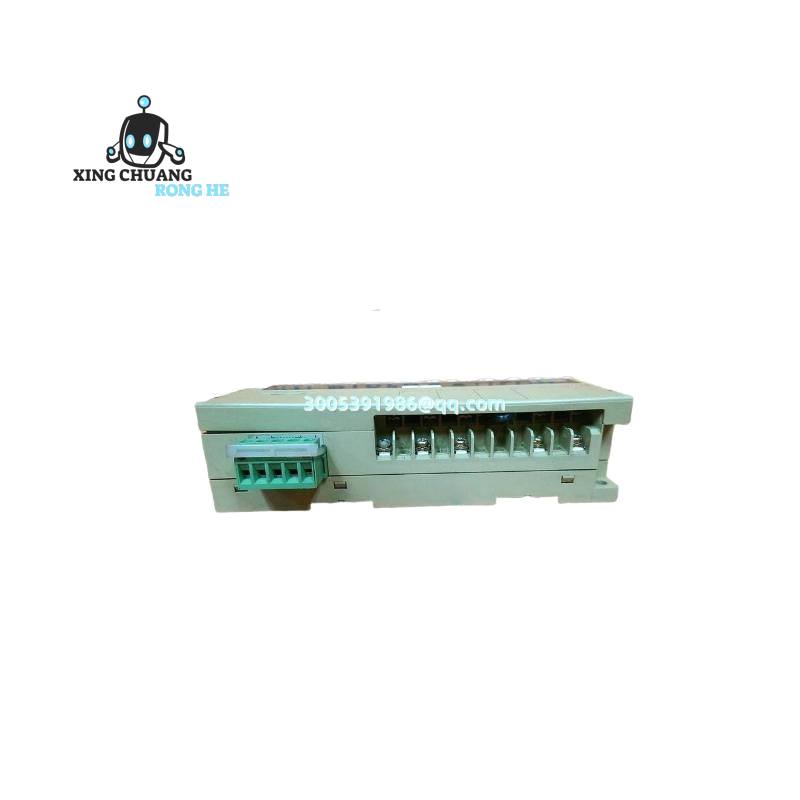

Typical installation in automotive assembly line control cabinet

You’ll spot these in food processing plants where moisture’s constant (thanks to the conformal coating), or retrofitted into legacy bottling lines originally designed for 110V systems. They play nice with Omron’s CJ1W-DRM21 modules and snap into CJ1M backplanes without adapters. Last month a customer in Ohio swapped out failing Mitsubishi supplies with these for his packaging robots—ended up saving $18k in downtime during holiday season. We keep 3500/3300 systems and GE VMIVME-7750 modules in stock too when you’re doing full system refreshes.

Spring-clamp terminals withstand vibration in high-shock environments

What makes these stand out? That built-in end-of-life counter—no more guessing when to replace. The thermal design dumps heat sideways instead of upward, crucial when stacked next to CPU modules. Personally, I found the 24V DC input option lifesaving during facility upgrades; one brewery client powered it straight from their existing 24V emergency bus during mains failures. Handles 60°C ambient temps without derating (unlike some brands), and the dual-color LED actually tells you something useful: steady green means “healthy”, flashing red means “replace within 30 days”. No fancy jargon—just keeps your PLCs breathing when the summer grid stutters.
