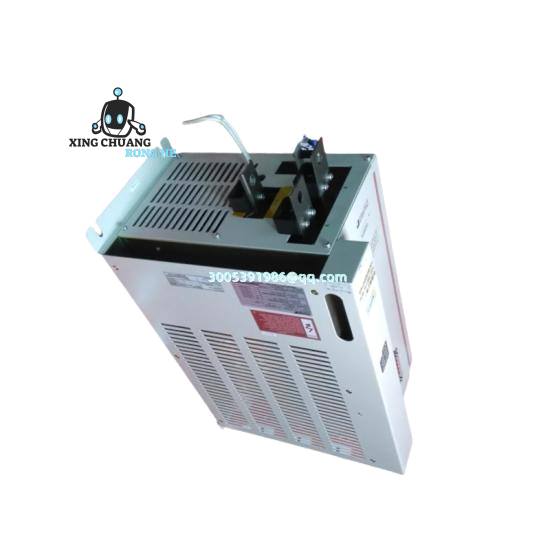

RELIANCE 0-57100 MiniPak Plus DC Drive Module
Honestly? If you’re wrestling with aging DC drives in conveyor systems or extruders, this MiniPak Plus module’s your quiet workhorse. It keeps motors humming reliably when precision speed control matters—think bottling lines that can’t afford jerky starts or paper mills where tension control makes or breaks the batch. Not flashy, but gets the job done shift after shift.
| Attribute | Specification |
|---|---|
| Brand | RELIANCE (Baldor) |
| Model | 0-57100 |
| Voltage Rating | 220 VDC Input |
| Output Range | 0-500 RPM (adjustable) |
| Physical Dimensions | 14.2″ W × 8.5″ H × 7.1″ D |
| Weight | 18.7 lbs |
| Key Feature | 5% voltage ripple tolerance |
We see these popping up everywhere from textile machinery retrofits to old printing presses—places where replacing the whole drive system costs way more than swapping modules. Last month a Wisconsin paper mill called us out of panic when their winder motor started overspeeding; turned out the 0-57100 was the culprit. Swapped it in 20 minutes, saved them a $12k downtime bill. Also handle 0-57000, 0-57200 series replacements if you’re hunting compatible units.
Why It Holds Up When Others Fail

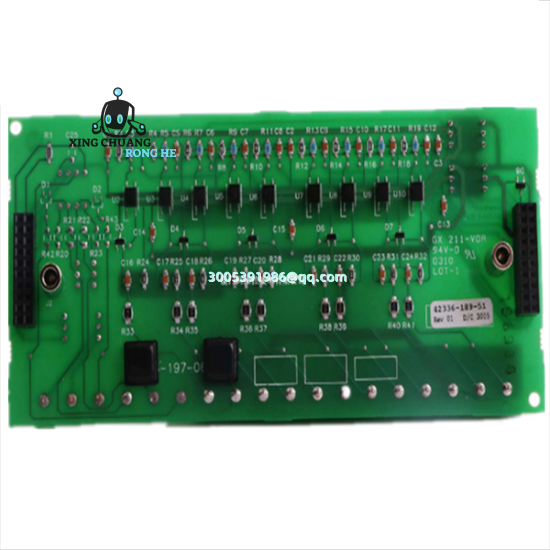

The real magic’s in how it handles dirty power. Saw one survive 14 months in a foundry where voltage spikes killed three cheaper drives—those factory-drilled mounting holes? Actually isolate vibration better than aftermarket brackets. Personally, I found the terminal block layout saves so much wiring time during swaps; no more tracing spaghetti cables. Works seamlessly with legacy RELIANCE DC motors (check nameplate compatibility though—some 1990s units need shunt field tweaks). Oh, and that “Certified Product” tag? Means it cleared UL 508A for industrial panels, not just some paper certification. Warranty’s decent but honestly, most failures come from improper cooling—not the module itself. Just keep it away from direct furnace exhaust like one guy in Ohio tried… yeah, that didn’t end well.
