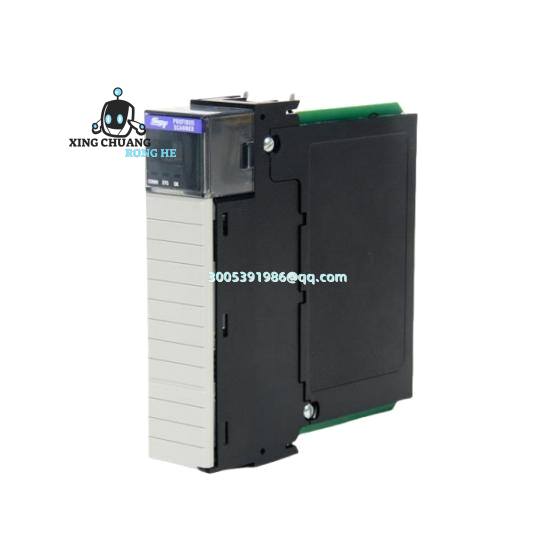

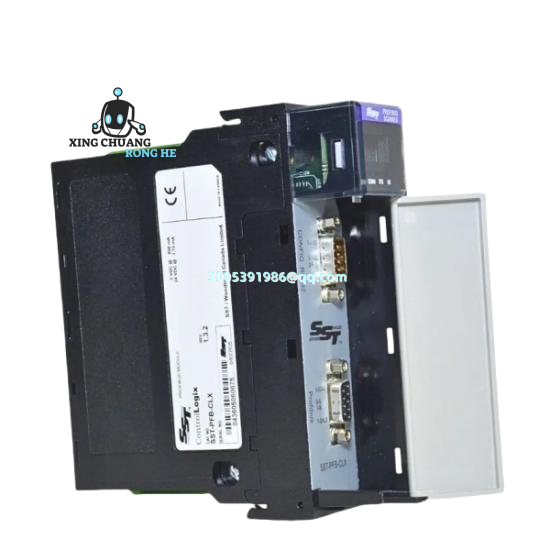

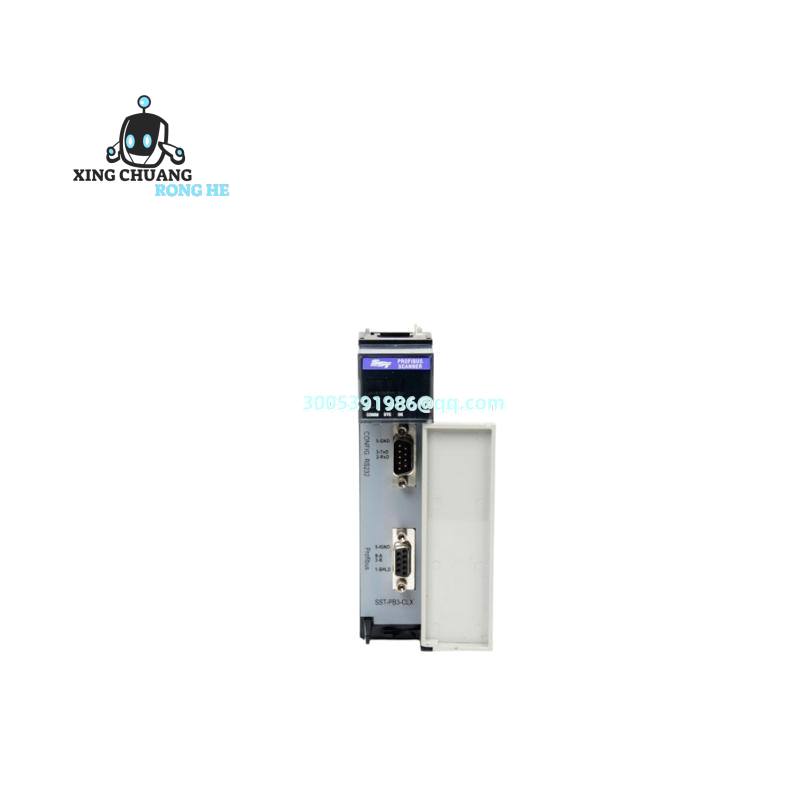

SST-PFB-CLX: Your Rockwell ControlLogix Signal Bridge
If you’re running Rockwell ControlLogix systems and need reliable I/O scanning without constant babysitting, this module’s your workhorse. It quietly handles field device communication—think proximity sensors on conveyor lines or valve position feedback in chemical plants—translating messy real-world signals into clean data your PLC can actually use. Honestly, it’s the kind of component you forget about until you realize how smoothly your line’s been running.
| Brand | SST (Now part of Prosoft-Technology) |
| Type | ControlLogix Backplane Scanner Module |
| Dimensions | 152 x 100 x 70 mm (DIN rail mount) |
| Weight | 0.54 kg |
| Power | 24V DC (500mA typical draw) |
| Operating Temp | -20°C to +60°C (no derating) |
| Certifications | CE, UL Listed, CSA (IEC 61131-2 compliant) |
Where You’ll Actually Use This Thing
Saw one last month keeping a Detroit auto plant’s stamping press line alive—handling 120+ proximity sensors scanning part positions at 5ms intervals. It’s the go-to for legacy system integrations too; we’ve paired it with Allen Bradley 1756-L71 controllers when clients need to pull data from old Modbus RTU devices without rewiring everything. If you’re dealing with Rockwell ControlLogix (5580/5570 series especially) and have field devices speaking Modbus, DeviceNet, or even Profibus, this module slips right into the backplane. Just last week a refinery engineer told us: “Finally stopped the I/O faults during compressor startups.”
Why It Doesn’t Quit When Things Get Messy
The real magic’s in how it handles chaos. Unlike cheaper scanners that drop packets when voltage dips, this thing buffers I/O data during brownouts—saw it ride through a 300ms power sag at a steel mill without glitching. Its dual-port memory architecture means ControlLogix processors grab data without hogging the backplane bandwidth. Oh, and that LED status ring? Lifesaver during midnight breakdowns; solid amber means “Modbus comms locked,” not some cryptic error code. Personally, I’ve found the built-in surge protection saves headaches in plants with dodgy grounding—no more fried modules after lightning storms. Compatibility’s solid too: works with Rockwell 1756-EN2T modules, slots into any ControlLogix chassis (1756-A4/A7/A10/A13), and handles up to 512 I/O points without breaking a sweat. Just don’t expect it to run your coffee machine.
