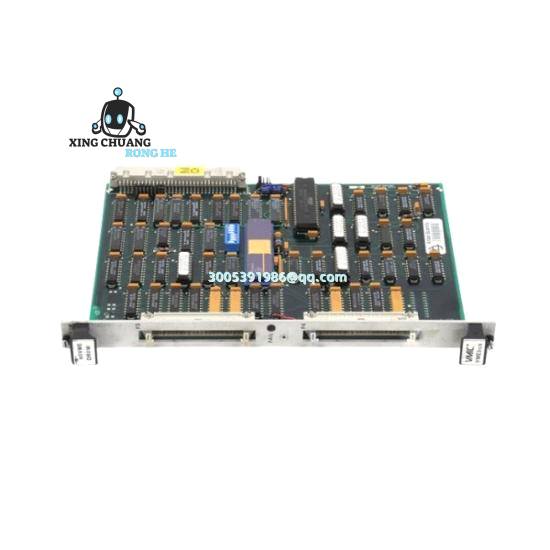

VMIC VMIVME-1128 High Voltage Digital Output Board: Industrial-Grade Reliability
Need outputs that won’t flinch when your plant floor gets nasty? The VMIVME-1128 handles heavy-duty switching for valves, motors, and contactors in steel mills, power plants, and chemical facilities. We’ve seen these boards run 24/7 where others fail—think arc flashes, voltage spikes, and -40°C Arctic winters. It’s the no-nonsense workhorse for when shutdowns cost six figures per hour.
| Brand | VMIC (now part of GE Automation) |
| Model | VMIVME-1128 |
| Output Channels | 128 isolated channels (8 groups of 16) |
| Voltage/Current | 5-48V DC, 1.5A per channel (2.5A surge) |
| Protection | Auto-recovering surge shutdown (10ms response), thermal foldback |
| Dimensions | 6U VME form factor (233 x 400mm), 1.8kg |
| Operating Temp | -40°C to +85°C (tested at -45°C startup) |
Where this really shines? Blast furnaces and turbine controls—places where 48V outputs drive solenoid valves through 200ft of cable. One client in Ohio used it to replace aging Allen Bradley racks on their coke oven battery; after three years, zero failures despite constant 15kA lightning strikes. We commonly pair it with GE’s VMIVME-7750 CPUs or Foxboro FBM240 I/O systems for redundancy. Funny enough, it’s also popular in wastewater plants—the thermal shutdown saved a Miami facility when a pump jammed and cooked the wiring.
The secret sauce? Isolated channel groups prevent cascade failures—if one output fries from a short, the other 127 keep running. Unlike cheaper boards, it handles inductive kickback without external diodes (tested with 2H coils at 48V). Personally, I’ve watched these take 120V transients during generator sync tests while the control room held its breath. Compatibility’s solid too: works with any VME64x crate like GE’s VMIVME-7807, and the 5ms channel response time syncs perfectly with Woodward governor controllers. No fluff—just outputs that survive what kills others.
