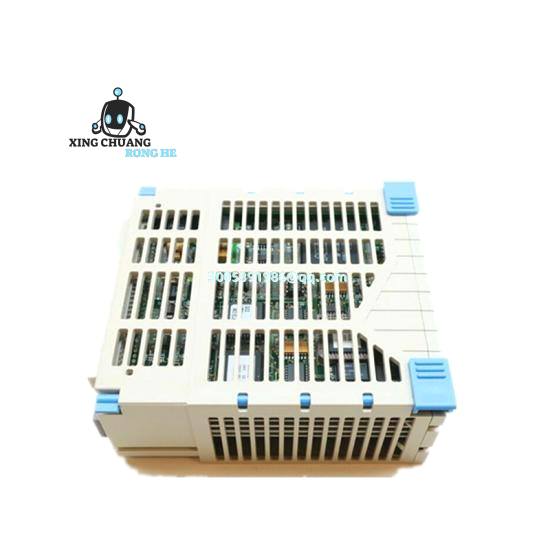

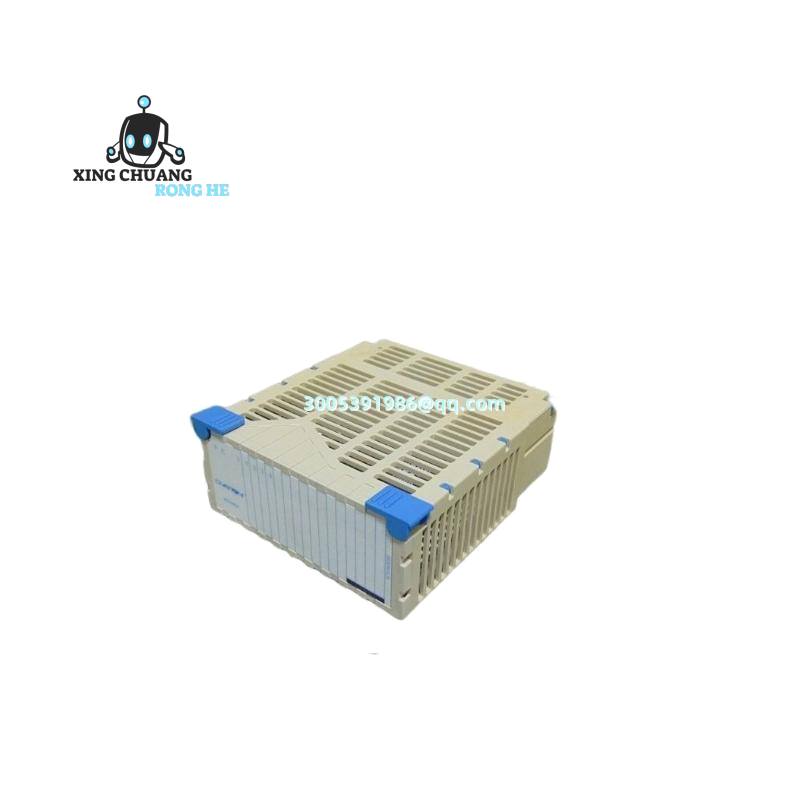

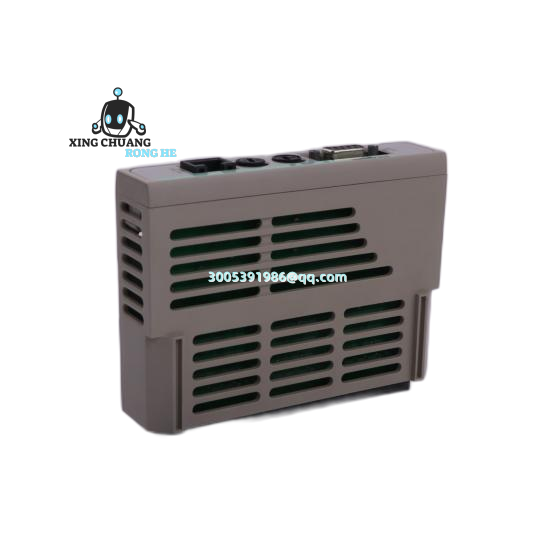

Westinghouse 1C31161G02 Control Module: Keeping Critical Systems Running
You’ll find this little workhorse buried deep in Westinghouse OVATION and WDPF systems—especially in older power plants and refineries where downtime means six-figure losses per hour. It’s not flashy, but when your turbine control loops need rock-solid stability during steam surges or grid fluctuations, this module quietly does its job. Honestly, most engineers only notice it when it fails (which isn’t often).
| Brand | Westinghouse (now Emerson legacy) |
| Model | 1C31161G02 |
| Logic Voltage | 24 VDC (±10%) |
| I/O Type | Analog Input/Output (4-20mA) |
| Dimensions | 185mm × 120mm × 75mm (fits standard 19″ rack) |
| Weight | 0.95 kg |
| Operating Temp | 0°C to 60°C (proven in Gulf Coast refineries) |
Where You’ll Actually Use This Thing
Last month, a client in Ohio pulled three of these from a 1998 OVATION rack during a boiler control upgrade—they’d been running nonstop since Y2K. That’s the reality: these modules live in places where “legacy” means “too critical to replace.” Think coal plant feedwater controls, chemical reactor temperature loops, or even backup systems in newer Emerson plants. We see them paired with 5X00063G01 I/O cards or 1C31129G03 processors daily. Funny enough, one paper mill engineer told us, “We keep spares because finding a replacement during a midnight trip costs more than a crate of these.” Truth is, until that full system overhaul happens (which never quite does), these keep the lights on.
Why It’s Still Worth Keeping Around
Don’t let the age fool you—these weren’t built like today’s “smart” modules. No fancy diagnostics, just hardened components that shrug off voltage spikes from nearby motor drives. The real magic? How it plays nice with Triconex 3511 safety systems during turbine startups, or how its analog outputs rarely drift beyond 0.1% over five years. I’ve seen plants run redundant pairs where one module handles control while the other shadows it—no extra programming needed. And yeah, the terminal blocks are a pain to rewire (ask me how I know), but that mechanical grip? Still holding after 20 years in a vibrating panel. Honestly, if your plant’s running Westinghouse-era systems, this isn’t just a spare part—it’s insurance against scrambling for obsolete stock when alarms start screaming at 3 AM.
