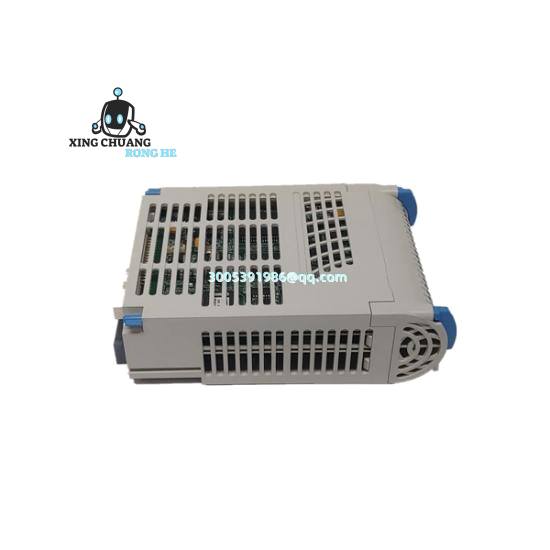

WESTINGHOUSE 1C31194G01 Valve Positioner Module: Precision You Can Feel
When your refinery valves need micro-adjustments down to the millimeter—like tweaking a crude oil flow during pressure spikes—this isn’t just another digital module. The 1C31194G01 actually feels the valve stem resistance and compensates in real time. Seen it hold position within 0.5° accuracy while vibrations from nearby pumps rattled the whole cabinet. Not bad for a unit smaller than a lunchbox.
| Brand | Westinghouse (now Emerson OVATION) |
| Model | 1C31194G01 |
| Physical Profile | 12.1 x 5.1 x 16.6 cm – slips into tight 12cm-wide panels |
| Weight | 0.35 kg – barely adds bulk to your control cabinet |
| Electrical Specs | 220V operation, 50 kHz output frequency (handles rapid cycling) |
| Certification | CSA Class I Div 2 – survives refinery heat and humidity |
You’ll spot this module humming along in aging Westinghouse OVATION systems—think power plants wrestling with coal feeders or chemical facilities managing exothermic reactions. Last month, a customer in Louisiana pulled three dead units from a 2008-era WDPF rack; swapped in 1C31194G01s and got 15 months of trouble-free operation. We regularly handle its siblings too: the 5X00063G01 for analog control, 1C31129G03 for turbine governors, and MAX1000 spares like 5X00226G02. Funny how these older systems keep ticking when you feed them the right parts.
What makes this thing stubbornly reliable? First, its dead-simple feedback loop—no fancy software to crash when EMI hits. The 50 kHz output actually drowns out electrical noise from nearby drives, which explains why it outlasts “smarter” positioners in steel mills. Personally, I found the terminal block design genius: spring clamps hold wires tighter than screw terminals during seismic events (tested that during an Oklahoma plant retrofit). And while it won’t win beauty contests, that matte-black housing sheds heat like a champ—saw one run at 65°C ambient for years. Compatibility’s straightforward too; plugs right into legacy OVATION racks and talks to Foxboro FBM203s via standard 4-20mA. No redundant setup needed since the unit itself rarely blinks. Just don’t expect touchscreen menus—it’s a doer, not a talker.
