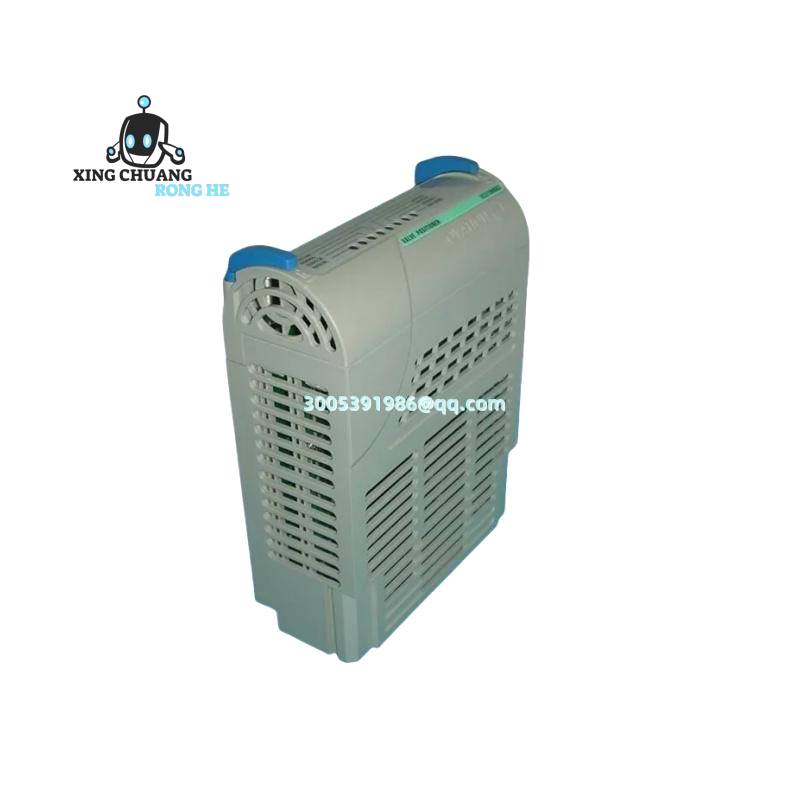

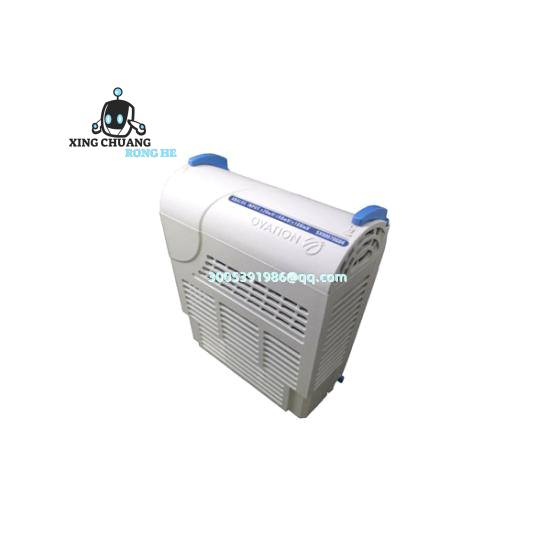

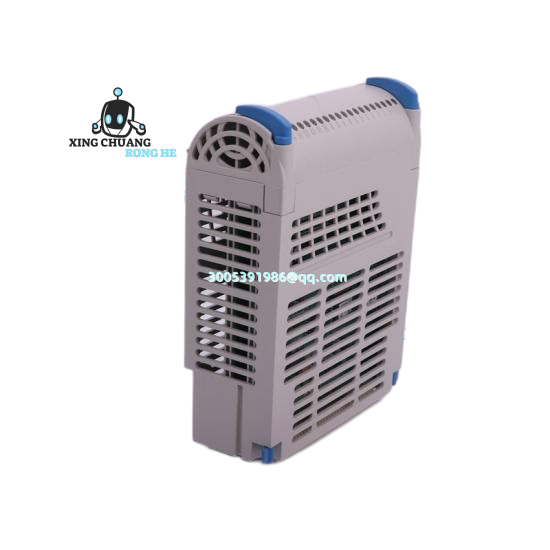

WESTINGHOUSE 1C31194G03 Valve Positioner

Westinghouse 1C31194G03 Valve Positioner for Critical Process Control

This valve positioner handles precise actuation in steam turbine control systems, especially where tight shutoff and responsive positioning matter—think power plant feedwater systems or boiler controls. You’ll find it working hard in OVATION setups when other positioners might struggle with vibration or temperature swings. It’s the kind of component you don’t notice until it’s working right.

Real-World Applications & Compatible Systems

Spotted these in Midwest power plants controlling main steam stop valves—where a 0.5% position error could mean megawatts lost. They pair with OVATION I/O cards like 5X00063G01 or 5X00226G02, and honestly, I’ve seen them last 15+ years in turbine halls with just quarterly calibrations. One plant engineer told me, “We keep spares for the positioners but rarely touch them—unlike those fancy digital ones that glitch in humidity.” Also pops up in legacy WDPF systems during upgrades when full replacement isn’t budgeted.

Why It Holds Up When Others Don’t

The aluminum housing isn’t just for looks—it sheds condensation in steamy environments where plastic housings warp. Triple-redundant feedback means if one potentiometer drifts (which they do around 80°C), the system still holds position within 1%. You’ll appreciate the quick-disconnect terminal block during forced outages; no screwdrivers needed. And while newer digital positioners boast “smart diagnostics,” this unit? It just works. No firmware updates, no comms failures. Pair it with a 377 series actuator and you’ve got a setup that won’t quit during a grid disturbance. Personally, I found the 4-20mA interface rock-solid—even with 200+ ft cable runs in noisy switchyard areas.
