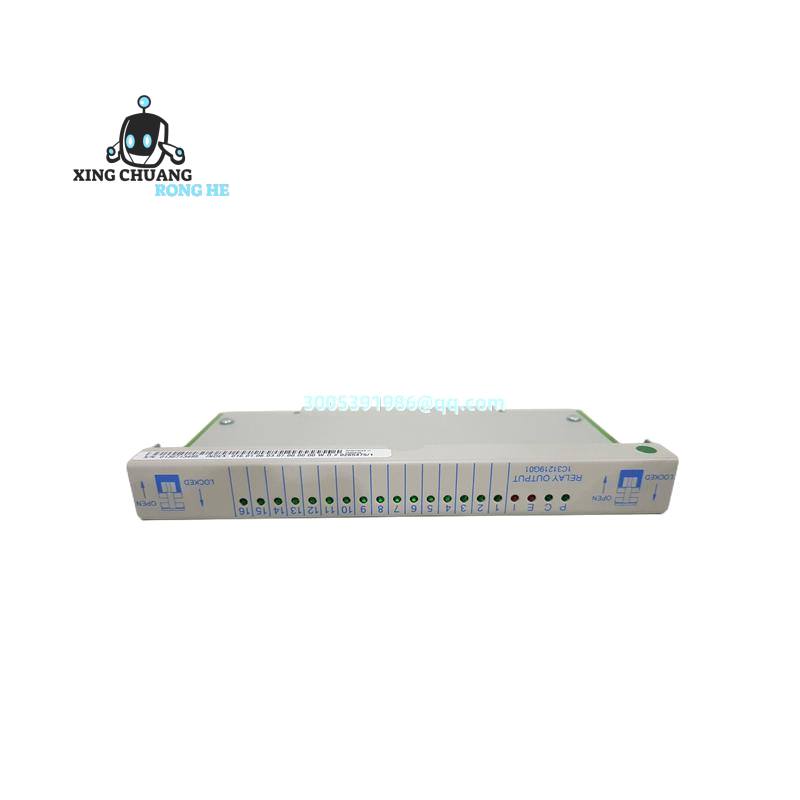

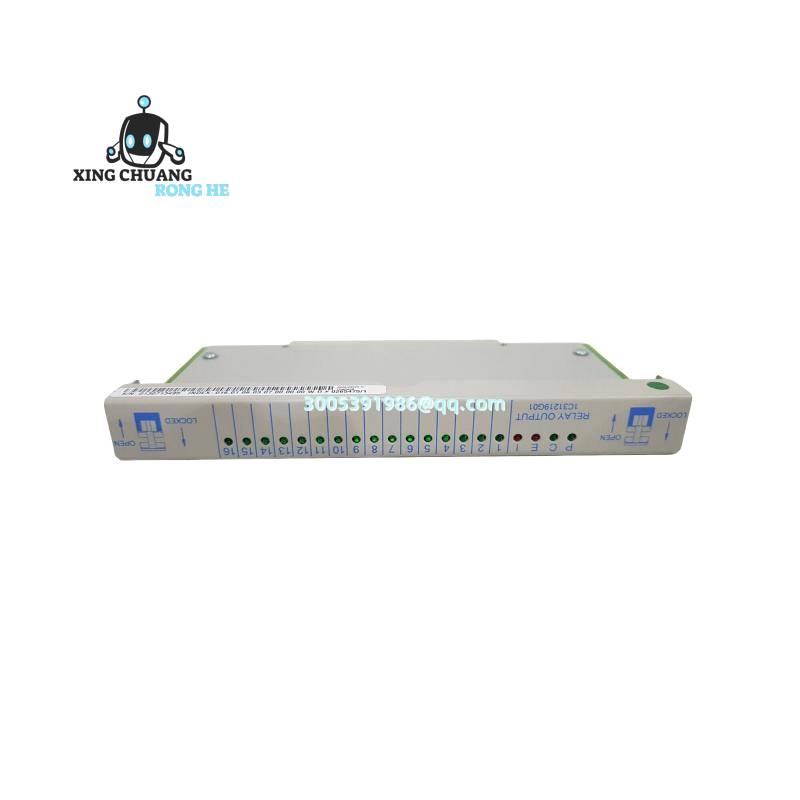

Westinghouse 1C31219G01 Relay Output Module: Industrial-Grade Signal Switching
This Westinghouse module handles discrete output switching in critical automation setups—think turbine controls or emergency shutdown sequences where you absolutely can’t afford contact bounce. It’s not some fancy power converter; it’s a workhorse for flipping high-current loads like valves and contactors in legacy power plants. Seen these pull double duty in Midwest coal facilities where newer systems haven’t quite caught up yet.
| Brand | Westinghouse (Emerson OVATION legacy) |
| Function | 8-channel relay output (dry contact) |
| Dimensions | 12.0 x 5.0 x 16.5 cm (WxDxH) |
| Contact Rating | 10A @ 250VAC / 5A @ 30VDC (resistive) |
| Operating Voltage | 125V DC control circuit (typical) |
| Weight | 0.34 kg |
Where You’ll Actually Use This Thing
Field techs keep these in stock for OVATION system retrofits—especially when replacing failed FIMs in aging nuclear plants or upgrading boiler controls at pulp mills. We’ve shipped them alongside 1C31129G03 analog inputs and 5X00063G01 processors for WDPF migrations. One Midwest utility guy told us: “These relays outlast the control cabinets they’re mounted in.” Pretty much standard issue for anyone maintaining Westinghouse-based systems where downtime means millions per hour.
Why It Still Matters in 2024
Honestly? The magic’s in the contact design—silver-alloy contacts handle inductive kickback from motor starters without welding shut. Unlike solid-state clones, these won’t fail silently during voltage spikes. They’re baked into OVATION’s redundancy scheme too; swap one out hot while the other channel keeps turbines spinning. Personally, I found the real win is the wetting current spec—0.5mA minimum means they play nice with legacy 4-20mA loops nobody wants to re-engineer. Sure, the mounting clips feel dated, but when you’re elbow-deep in a control room at 3AM, that mechanical “thunk” when it locks in tells you everything’s seated right. No fancy diagnostics needed.
