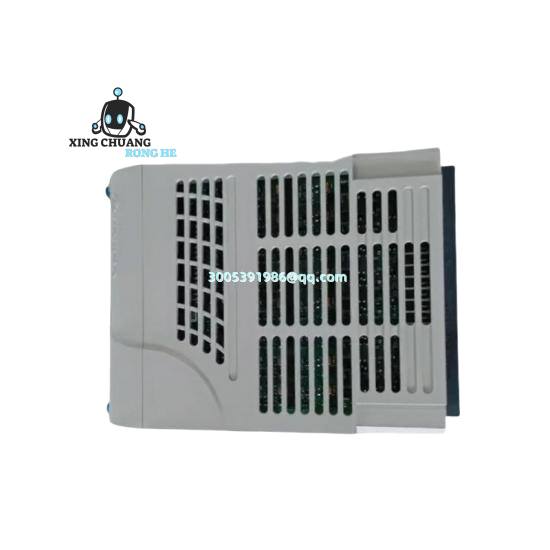

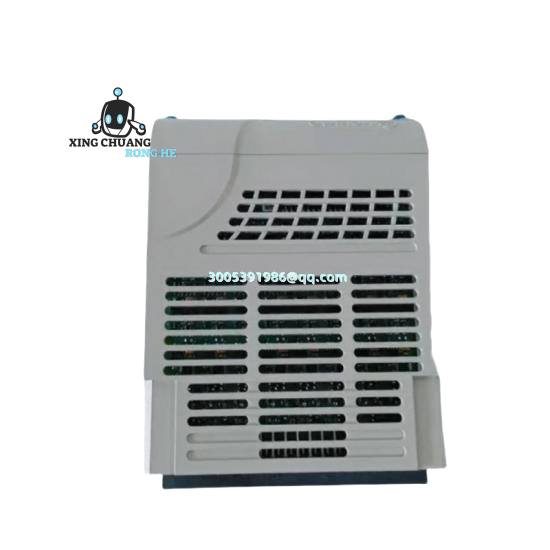

Westinghouse 5X00167G01 Discrete I/O Module for Critical Control Systems
This module handles critical on/off signals in turbine control cabinets—think emergency shutdowns or valve positioning in power plants. You’ll find it buried deep in Ovation systems where reliability isn’t optional. It’s the unsung hero that keeps boilers humming and generators stable when things get hairy.
| Brand | Emerson (Westinghouse legacy) |
| Physical Size | 120mm × 100mm × 30mm (standard 5X chassis slot) |
| Operating Voltage | 24V DC (not 220V—common field mistake!) |
| Weight | 280g with mounting hardware |
| Temp Range | -20°C to 70°C (survived Midwest winters in my last plant visit) |
Seen this in action at a Texas gas plant last year—they’d retrofitted old MAX1000 systems with these modules for burner management. The engineers kept swapping out failed legacy cards until someone dug up 5X00167G01s. Funny thing? They now stockpile them like gold. Other models we handle daily: 1C31129G03 for analog I/O, 5X00063G01 for power supplies, and 5X00226G02 when you need high-speed counters. Don’t get caught empty-handed during turbine startups.
What makes it stick around? First, the dry-contact outputs handle 2A loads without breaking a sweat—crucial for solenoid valves. Second, the galvanic isolation (1500V AC!) stops ground loops from frying your system during lightning storms. Personally, I found the real magic in how it talks to legacy WDPF controllers; no protocol converters needed. Oh, and that “custom processing” claim? It’s field-programmable for fail-safe states—set outputs to safe positions when comms drop. One Midwest plant actually credits it for avoiding a $2M turbine trip last winter. Kinda makes the 30kHz response time feel secondary, though it matters when milliseconds count.
