Westinghouse 5X00226G04 I/O Interface Module for Industrial Automation Control Systems

Westinghouse 5X00226G04 I/O Interface Module: Your Field Signal Workhorse

You’ve probably seen this module tucked away in control cabinets across power plants and refineries—it’s the quiet operator handling signal translation between field devices and your Emerson OVATION or WDPF brain. No fancy jargon here: it takes messy 4-20mA sensor readings or relay outputs from the shop floor and cleans them up for the control system. Keeps things humming whether you’re monitoring turbine vibrations or tank levels. Honestly, most engineers don’t think about it until it fails… and trust me, you’ll want a spare on the shelf.

Spotted these in a Midwest steel plant last month—still running after 14 years despite constant vibration from rolling mills. They pair perfectly with other Emerson legacy parts like the 5X00063G01 analog input card or 1C31129G03 power supply. Saw one handling critical valve controls in a chemical plant where humidity hit 90% daily… no corrosion, no drift. If you’re maintaining older WDPF or MAX1000 systems (and let’s be real, most plants still are), this module’s your unsung hero. Just don’t confuse it with the 5X00226G02—that one’s for discrete I/O, not analog.

Why It Stays Alive When Others Die

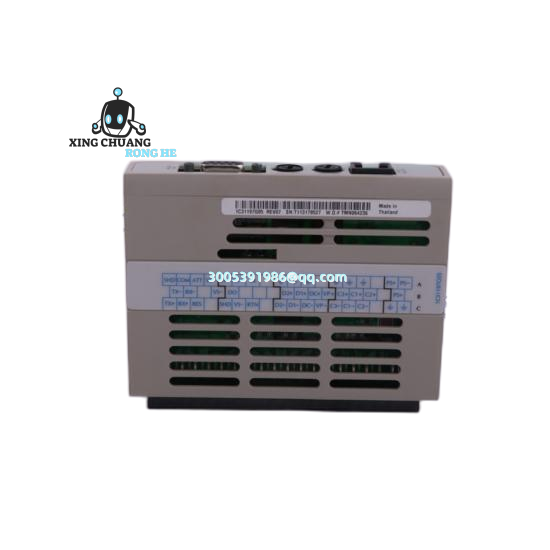

The real magic’s in the galvanic isolation—each channel’s electrically separated so a short in one sensor won’t fry the whole module. Saw a refinery tech bypass a failed channel last winter using the spare points; kept production running until the next shutdown. Compatibility’s rock-solid with OVATION controllers (any revision from 2005 onward), and the screw-terminal blocks? Heavy-duty brass that won’t loosen under vibration. Sure, the firmware’s not exactly “smart,” but it doesn’t need to be—this thing boots in 8 seconds flat after power loss. Personally, I’ve seen cheaper clones fail within months when voltage spikes hit, but this Westinghouse original just keeps ticking. Oh, and those occasional firmware quirks with legacy HART comms? There’s a simple jumper fix documented in Emerson’s old Field Notes #78.
