Westinghouse 5X00241G04: The Workhorse Module for Critical Power Systems

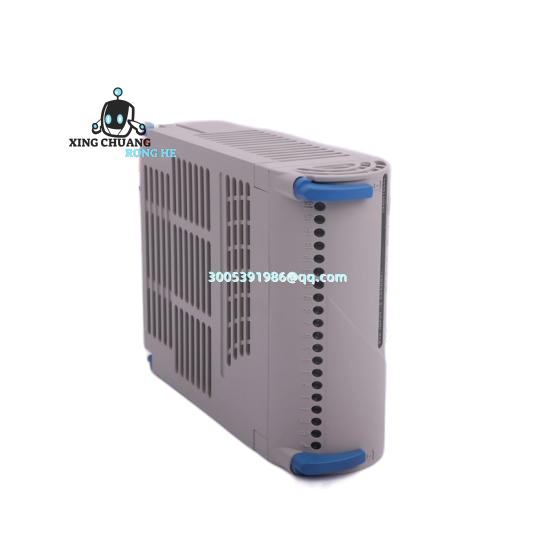

You’ll find the Westinghouse 5X00241G04 buried deep in OVATION or WDPF control racks across power plants and refineries—this isn’t some flashy new gadget but the kind of rugged I/O module that keeps turbines spinning when things get hairy. It handles analog signals for pressure, temperature, and flow in boiler controls, turbine protection systems, and emergency shutdown sequences. Honestly, if your plant’s been running since the 90s, chances are good this exact module’s been sweating in the back row for decades.
| Specification | Detail |
|---|---|
| Brand | Westinghouse (now Emerson OVATION) |
| Primary Function | 4-20mA Analog Input Module |
| Voltage Rating | 24 VDC (isolated field side) |
| Signal Range | 0-20mA / 4-20mA (configurable per channel) |
| Weight | 0.52 kg (1.15 lbs) |
| Dimensions | 105 x 25 x 160 mm (W x H x D) |
| Certifications | UL 61010-1, CSA C22.2 No. 61010-1, CE |
Look, I’ve seen these modules in action at three different coal plants—and one refinery where dust would choke a lesser board. They’re the backbone for legacy Westinghouse systems like the MAX1000 and WDPF, especially when you’re dealing with analog signals from Bently Nevada probes or Foxboro field instruments. Last month, a client in Ohio pulled six dead 5X00241G04s out of a 1998 OVATION rack during a turbine upgrade; swapped in replacements, and the system came back online before lunch. Other models we see daily? 1C31129G03 for digital I/O, 5X00063G01 for power supplies, and those tricky 5X00226G02 communication cards that everyone hates troubleshooting.
The real magic’s in how these things survive. Each channel’s optically isolated—so when a 480V spike hits near that feedwater pump transmitter, the rest of your rack doesn’t go dark. Personally, I found the screw-terminal blocks hold up better than spring-clamp types in high-vibration areas (learned that the hard way during a midnight call at a paper mill). They’re not “smart” modules by today’s standards, but that’s the point—they don’t need firmware updates or IP addresses. Just plug ’em in, set the jumpers, and forget ’em for 15 years. Compatibility’s straightforward too: drops right into any Westinghouse I/O chassis from the WDPF era, talks clean to GE Mark VI systems via standard 4-20mA, and plays nice with Honeywell UDC controllers through simple signal conditioning. Redundancy? Not built-in, but pair it with a 5X00063G01 power supply in parallel, and you’ve got basic failover for critical loops. Bottom line: when your plant manager’s yelling about a trip, you want this module—not something that needs a PhD to configure.
