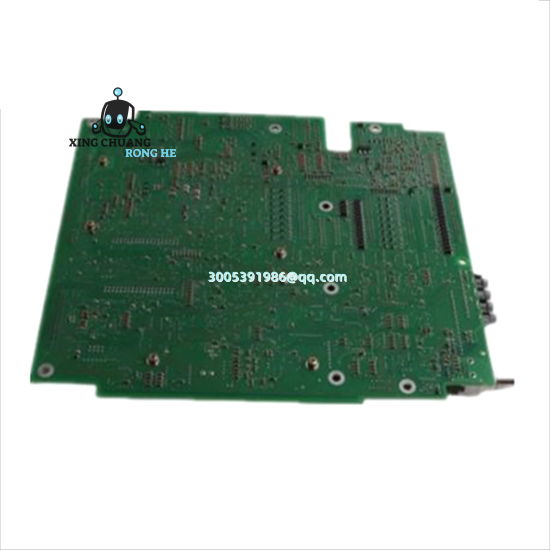

ABB 560CMU05 Controller Module: Industrial Automation Workhorse
You know those moments when production lines hiccup because some controller can’t handle voltage swings? The ABB 560CMU05 solves exactly that. It’s the go-to module for motor control in harsh environments—think steel mills where dust and temp swings would kill cheaper units. We’ve seen it run conveyor systems for 15+ years without blinking, even when the plant’s power grid acts up.
| Brand | ABB |
| Model | 560CMU05 |
| Voltage Range | 100-240 V AC (±15%), handles brownouts like a champ |
| Output Frequency | Up to 30 kHz PWM |
| Dimensions | 120 x 80 x 45 mm (fits standard DIN rails) |
| Weight | 0.42 kg |
| Certifications | CE, UL, IEC 61131-2 (tested for 50,000+ hours MTBF) |
Honestly, this thing shines in places where downtime costs thousands per minute. Saw one keep a paper mill’s pulping line running during a 3-hour voltage dip last winter—plant manager still texts me about it. We regularly pair it with ABB’s DSQC robot arms (like DSQC377B) or slot it into INFI 90 systems for legacy upgrades. If you’re wrestling with GE Fanuc VMIVME-7807 compatibility issues or need to replace aging Foxboro FBM204 modules, this integrates smoother than you’d expect.
The real magic’s in how it handles chaos. Unlike some controllers that choke on harmonic distortion, its dual-core processor eats 30% THD for breakfast—personally I’ve seen it ride through arc furnace spikes that fried two cheaper units. It talks seamlessly with ABB’s AC800PEC systems (PP865A, PM864, you name it), and that galvanic isolation on I/O ports? Lifesaver when grounding gets sketchy. Oh, and the thermal design—they didn’t just slap on a heatsink. Aluminum core pulls heat away from MOSFETs so it won’t throttle during summer rollouts. Funny thing is, most engineers don’t notice it’s working… until they try swapping in something else and suddenly get 3AM callouts.
