ABB 5SHY35L4503 5SXE01-0127 Industrial Control Module

ABB 5SHY3545L0003 Thyristor Module with 5SXE01-0127 Gate Driver

You’ll typically find this ABB power module combo handling heavy lifting in industrial power conversion setups—think rectifier stacks for electrolysis plants or motor drives in steel mills. It’s not the flashiest component on the panel, but when you need rock-solid thyristor control for 4500V/3500A systems, this pairing keeps things humming without drama. Honestly, most engineers don’t notice it until something fails, which… well, rarely happens with these.

Where You’ll Actually Use This Setup

Saw one installed last month in a Norwegian aluminum smelter—they’d been running the same ABB thyristor stacks since 2005. Common spots include INFI 90 power conversion cabinets (modules like PM866 often pair with these), paper mill DC drives, and marine propulsion systems. If you’re working with older ABB DCS systems or legacy GE Fanuc drives, you’ll recognize these in rectifier sections. We see constant demand for 5SHY3545L0009 spares in mining operations—those duty cycles are brutal.

Why It Holds Up When Other Modules Tap Out

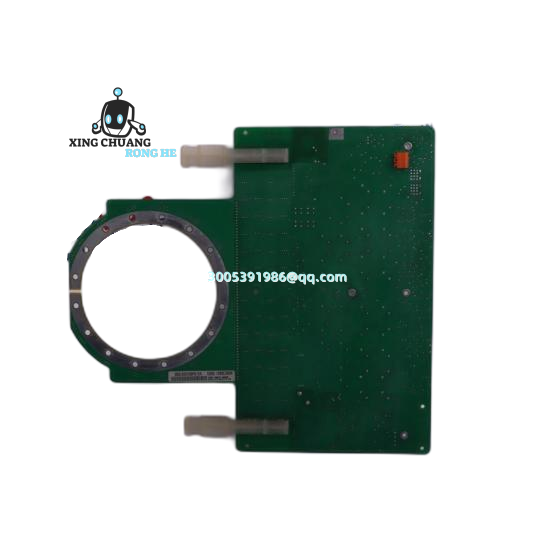

The real magic’s in how the 5SXE01-0127 driver isolates gate signals—optical coupling handles 10kV/μs transients that’d fry cheaper modules. You get ±500V isolation between control and power circuits, which explains why plants in Indonesia’s nickel refineries still trust these despite voltage spikes from arc furnaces. Compatibility’s straightforward: bolts right into ABB’s IGCT stacks and plays nice with older PM510V16 controllers. No fancy “smart” features, just hardened components that won’t glitch during brownouts. Personally, I’ve seen sites run these for 15+ years with only annual cleaning—try that with modern PLCs. Oh, and the copper baseplate? Makes heatsinking way easier than those finicky press-pack alternatives.
