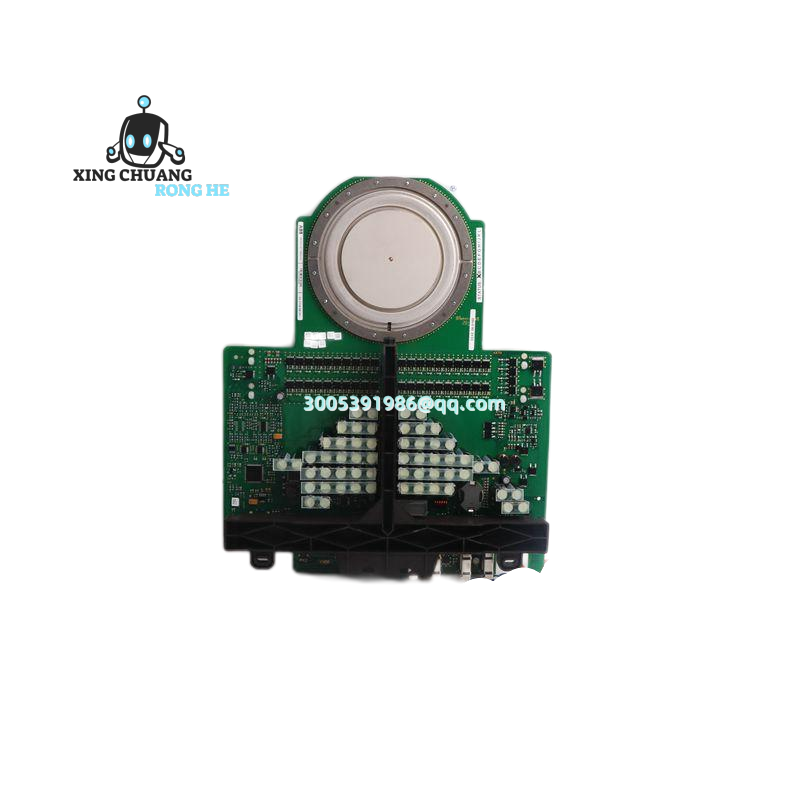

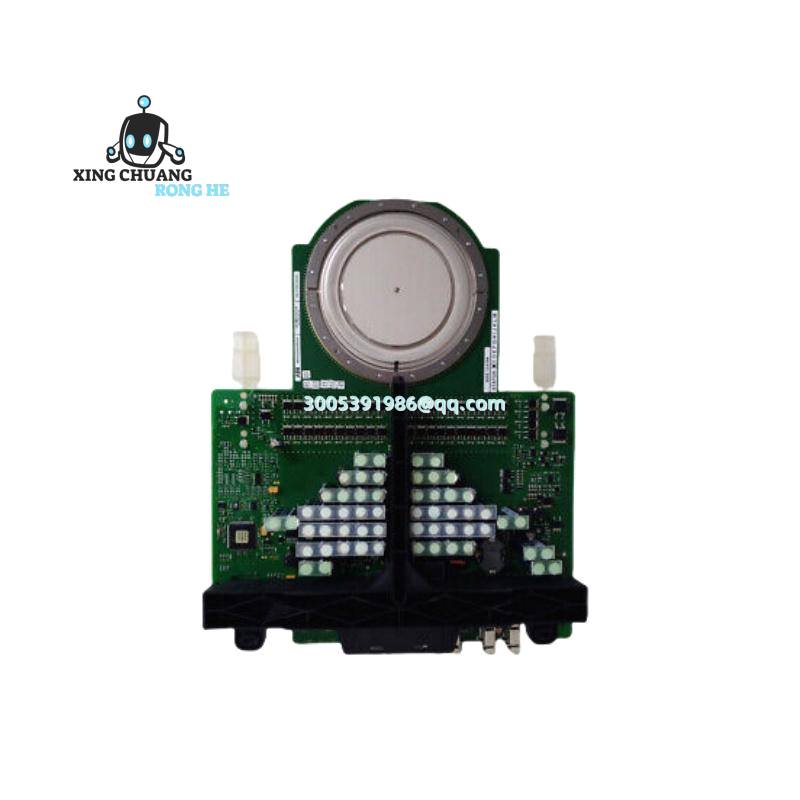

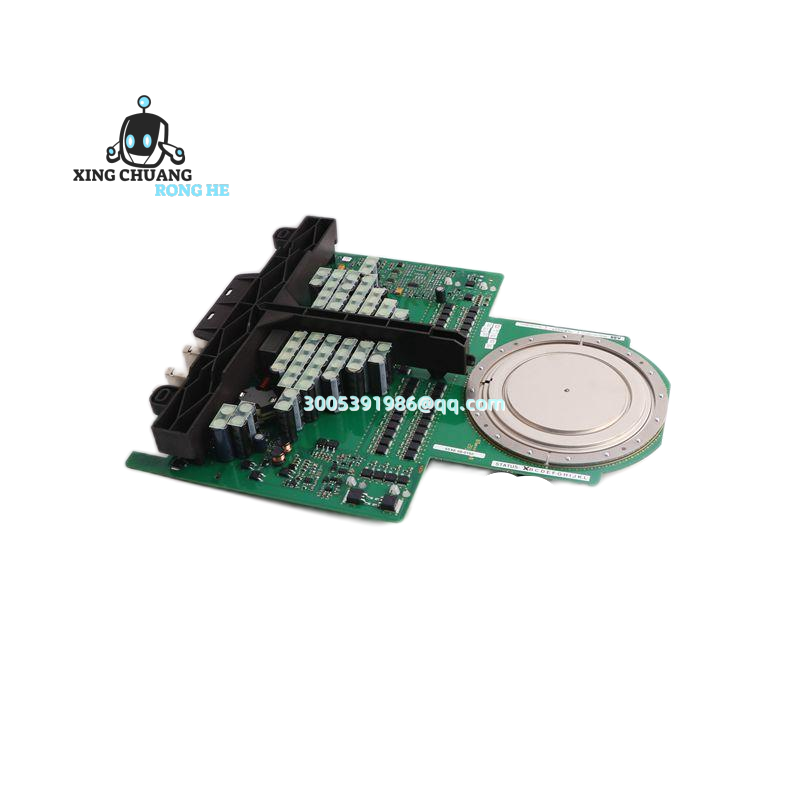

ABB 5SHY4045L0001 GVC750BE101: Thyristor Gate Driver for Heavy-Duty Power Control
This isn’t your standard control module—it’s the muscle behind ABB’s high-power IGCT stacks. Think steel mill rolling drives or cement kiln systems where you need serious voltage handling without blinking. We’ve seen plants run these nonstop for 15+ years when properly cooled, keeping those massive motors spinning through voltage sags and harmonic chaos. Honestly? If your process involves multi-megawatt loads, you probably need this gate driver breathing life into your thyristors.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Core Function | IGCT Gate Voltage Controller (GVC) |
| Isolation Voltage | 4 kV AC (1 min) |
| Gate Current | Peak 25A / Avg 1.5A |
| Dimensions (W×H×D) | 225 × 135 × 70 mm |
| Weight | 1.8 kg |
| Cooling Requirement | Forced air (min 15 m³/h) |
Where You’ll Actually Need This Beast
Forget lab experiments—this lives in the trenches of heavy industry. Saw one last month keeping a Norwegian offshore platform’s dynamic positioning thrusters responsive during storm surges. Common in: cement plant kiln drives (like those using ABB’s ACS6000), ship propulsion systems, and aluminum smelting rectifiers. We handle all the IGCT stack companions too—PM866 controllers, PP877 power supplies, and those DSQC robot arm modules for automation cells feeding the process. One plant manager told us, “When the 5SHY4045 trips, the whole rolling line stops—so yeah, we keep spares.” Fair enough.
Why It Doesn’t Quit When Things Get Ugly
Let’s be real—the magic’s in the redundancy and tolerance. Dual optical interfaces mean if one fiber link gets chewed by rodents (yes, really happened in a Brazilian mine), the backup path keeps firing thyristors. Handles 150% overload for 10 seconds without breaking a sweat, which matters when your blast furnace transformer kicks in. Personally, I found the galvanic isolation saves headaches during ground faults—saw a Thai rubber plant avoid $200k in downtime because this unit took the hit instead of frying the whole drive. Compatible with ABB’s Symphony Plus DCS too, so no need to re-engineer your control room. Oh, and that aluminum housing? Doubles as a heatsink when your cooling fan clogs with sawdust. Not flashy, but gets the job done.
