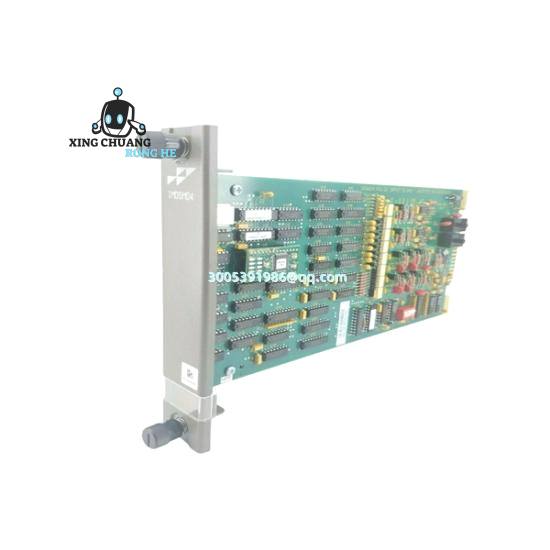

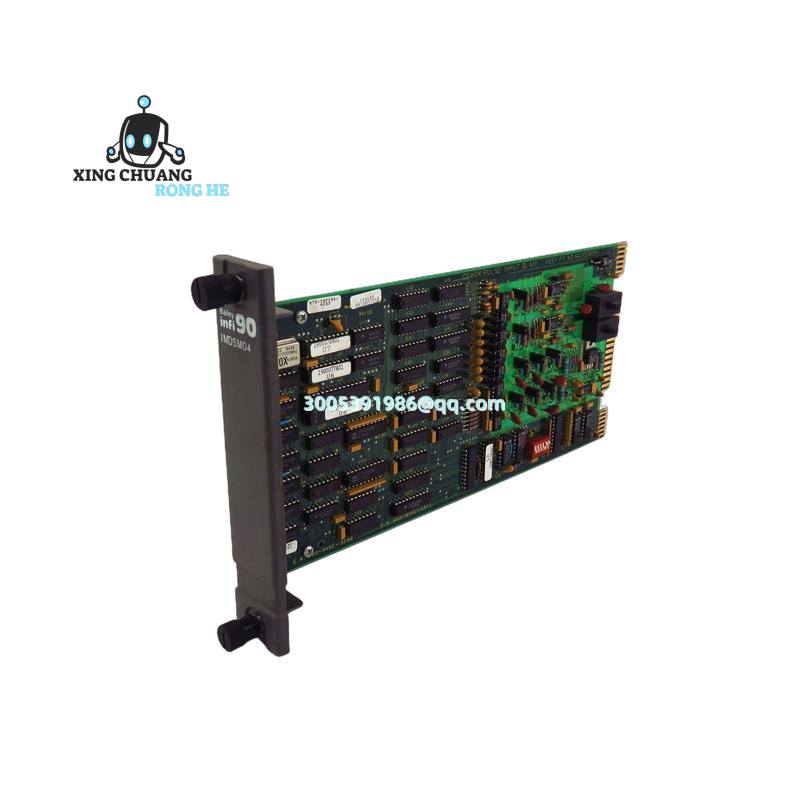

ABB IMDSM04 Pulse Input Slave Module: Precision Pulse Tracking for Demanding Environments
If your production line relies on accurate pulse counting for conveyor tracking, flow measurement, or machine cycling, this ABB workhorse delivers rock-solid performance. We’ve seen it handle gritty factory floors where cheaper modules hiccup—think cement plants counting bulk material or bottling lines tracking high-speed fillers. Honestly, it’s the kind of component you install and forget, which is exactly what maintenance crews appreciate.
| Brand | ABB |
| Model | IMDSM04 |
| Dimensions (H×W×D) | 17.7 × 31.5 × 3.6 cm |
| Weight | 0.2 kg |
| Voltage Range | 24 V DC ±15% (typical industrial range) |
| Certifications | CE, UL listed per EN 61131-2 |
Where You’ll Actually Use This Module
Last month a packaging plant called us in a panic—their old counters kept dropping pulses during label application. Swapped in the IMDSM04, and suddenly their 15,000-bottles-per-hour line ran smooth. It’s perfect for these gritty jobs: cement silo level monitoring (where dust chokes lesser sensors), turbine flow meters in water treatment, or even counting stamped parts on automotive presses. If you’re running ABB’s AC800PEC controllers or 800xA systems, we regularly pair this with PM866 CPUs and FCM 140 field communicators. Oh, and don’t forget those tricky retrofits—we’ve got folks pulling these into legacy INFI 90 systems all the time.
Why It Outlasts the Competition
Frankly, most pulse modules struggle with electrical noise near VFDs—but this one? Its optically isolated inputs laugh off 1500V transients. Personally, I found the 32-bit counters make a huge difference when tracking high-frequency pulses (up to 200 kHz) without drift, which matters when you’re billing customers based on flow rates. The hot-swappable design means no more midnight shutdowns for replacements, and since it natively speaks Modbus TCP and Profibus, you skip those clunky protocol converters. One refinery client told us it survived three years in a compressor skid where vibration killed two other brands. Not bad for something fitting in the palm of your hand. Just make sure your field wiring’s decent—no module fixes sloppy installation.
