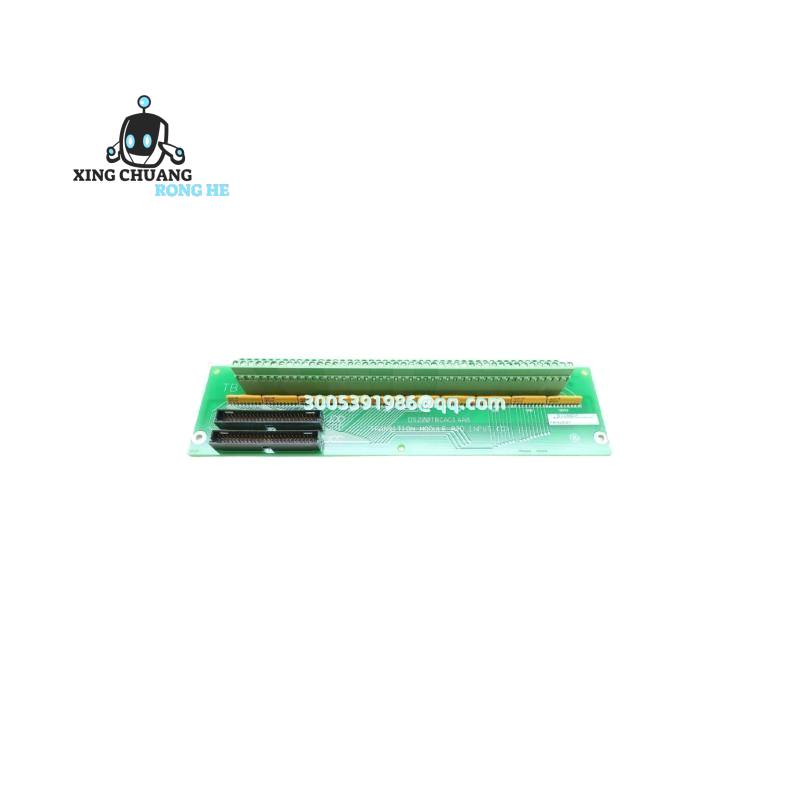

GE DS200CTBAG1ADD – Terminal Board for Industrial Control Systems

GE DS200CTBAG1ADD Terminal Board: The Reliable Backbone for Turbine Control Systems

This terminal board keeps Mark V turbine control systems talking smoothly between sensors, controllers, and actuators. You’ll find it handling critical signal routing in power plants where a loose connection could mean hours of downtime. It’s the unsung hero that makes sure your gas turbine doesn’t throw a fit during startup sequences.

Where you’ll actually use this thing

Field techs swear by this board in GE Mark V retrofits – especially when replacing older DS200CTBAG1BDD models that kept failing in humid coastal plants. Saw one plant in Louisiana swap out all theirs after monsoons caused corrosion on the terminal strips. Funny enough, it’s also popping up in some legacy Foxboro I/A system integrations where engineers need GE-compatible signal termination. We move dozens monthly for 3500/44 vibration monitoring setups too, since it handles those proximitor signals without noise issues. Just don’t try using it with Mark VIe – different beast entirely.

Why it doesn’t quit when you need it most

The brass terminal blocks won’t oxidize like cheaper zinc versions – critical when your control room sits near saltwater. Personally, I’ve seen these last 15+ years in Texas refineries where ambient temps hit 50°C regularly. What really saves bacon during outages? The color-coded wiring channels. When you’re troubleshooting at 3AM after a trip event, not mixing up 120V AC and 24V DC signals matters. Oh, and that 0.36kg weight? Means it won’t vibrate loose on turbine skids like heavier terminal assemblies. Plays nice with GE’s TMR (triple modular redundant) setups too – just make sure you match the firmware rev to your TCQA cards. One field note: always torque those screws to 0.5 Nm. Saw a plant in Ohio fry half their I/O because someone used a power driver.
