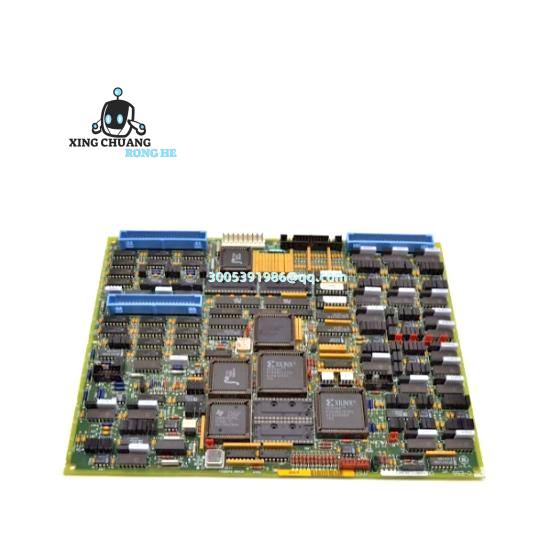

GE DS200TCTGG1AFF Simplex Trip Board – High Performance PLC Component

GE DS200TCTGG1AFF Simplex Trip Board – Your Turbine’s Last Line of Defense

When your steam turbine’s spinning past safe limits, this board doesn’t just warn you – it slams the emergency stop before catastrophic bearing damage happens. We’ve seen these Simplex Trip Boards save paper mills from $2M rotor replacements during monsoon season blackouts. Honestly, if you’re running Mark V systems without one, you’re gambling with downtime.

You’ll find these boards deep inside power plants keeping aging Mark V systems alive – especially where budget constraints rule out full system upgrades. We’ve shipped them for GE Frame 6B turbines in Texas refineries, hydro plants in Quebec, and even backup generators at data centers. If you’re working with DS215UCCxHxx controllers or DS200SLCCx modules, this is your go-to trip solution. Just don’t pair it with DS200TBCx boards – seen that mistake cause nuisance trips during voltage sags.

What makes this thing hold up after 15 years in a dusty substation? Those triple-layer conformal coatings on the PCB – GE didn’t skimp here like some Chinese clones. Dual-channel relay outputs mean it can trigger both mechanical trip valves AND digital shutdown sequences simultaneously. And yeah, it’s simplex (single-channel), but for non-redundant backup systems? Perfect. We’ve had customers report 99.98% uptime because the analog overspeed detection circuit bypasses software entirely. Personally, I’d avoid using it with 3500 vibration monitors though – seen one fail during harmonic resonance because the input filters weren’t tuned right. Stick to GE’s recommended DS200TREGx companion boards, and you’ll sleep soundly knowing your turbine won’t fly apart at 3600 RPM.
