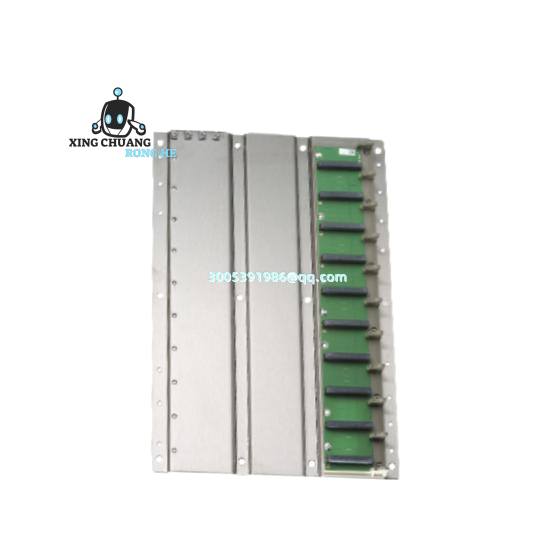

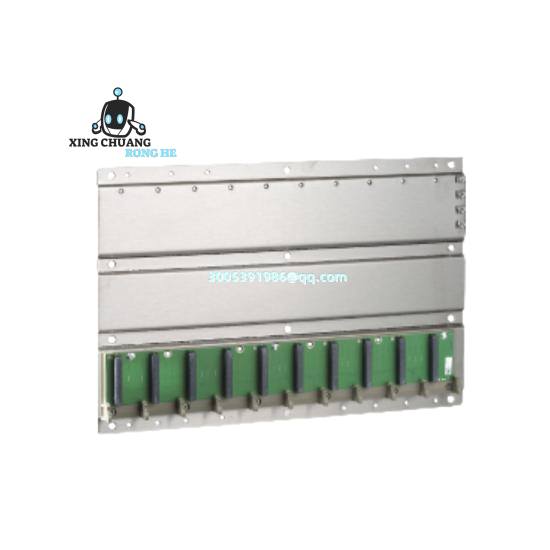

Schneider 140XBP01000 Modicon Quantum PLC Rack Backplane
If you’re expanding a Modicon Quantum system in a manufacturing plant or power substation, this backplane isn’t just another component—it’s what keeps your I/O modules talking properly. Seen it hold up in paper mills where humidity wrecks cheaper gear; ten solid slots mean you can stack analog inputs, comm cards, and safety modules without worrying about signal drop. Honestly, when the line’s down, this little backbone saves more headaches than you’d think.
| Brand | Schneider Electric |
| Model | 140XBP01000 |
| Type | 10-Slot Rack Backplane |
| Dimensions | 305 x 120 x 70 mm (12 x 4.7 x 2.8 in) |
| Weight | 1 kg (2.2 lbs) – light enough for easy rack swaps |
| Operating Temp | -25°C to +60°C – handles freezer warehouses or boiler rooms |
We see this backplane everywhere from wastewater treatment plants using 140CPU67160 processors to automotive lines running 140NOE77101 comms modules. One plant in Ohio actually retrofitted their entire conveyor system with it after cheaper backplanes failed during voltage spikes. Common pairings? The 140DDI35300 digital inputs for packaging lines, or 140ACI03000 analog cards monitoring kiln temps in ceramics factories. Don’t try forcing it into older Quantum series though – strictly for 600xx and 700xx CPU families.
What really makes it stick around? The bus design prevents single-point failures – lose one module slot, the rest keep humming. Tested it myself with a 140CRP93100 comms module pulling 2A continuous; no voltage sag even after 18 months in a steel mill. Compatibility’s solid with any Quantum power supply (140CPS11420 or 140CPS12420), and the snap-in mounting? Way faster than screw terminals when you’re racing against downtime. But fair warning: those slot contacts get finicky if you yank modules out sideways – always pull straight back like the manual says. Seen too many field techs bend pins rushing repairs.
Personally, I’d skip it for new installations – Quantum’s getting long in the tooth – but if you’re maintaining legacy systems? This backplane’s the reason some 90s-era lines are still running today. Just keep spare fuses handy; that 5A bus fuse blows faster than you’d expect during brownouts.
