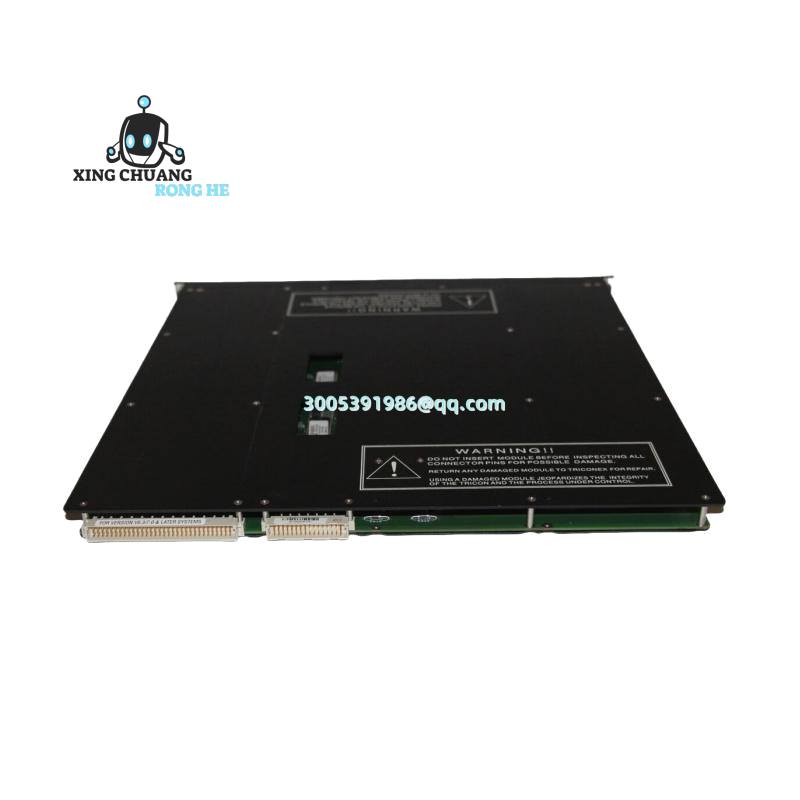

TRICONEX 3503EC1 Analog Input Module: Precision Signal Handling for Critical Processes
This rugged analog input module handles vibration monitoring and process signals where failure isn’t an option. You’ll find it in offshore platforms, refineries, and power plants feeding critical data to Tricon safety systems. It quietly does its job for years in 100+°C control rooms or freezing Arctic conditions—no fancy displays, just reliable 4-20mA and thermocouple readings when your turbines or reactors need watching.
| Attribute | Specification |
|---|---|
| Brand | TRICONEX (Schneider Electric) |
| Model | 3503EC1 |
| Input Channels | 16 isolated (8 differential pairs) |
| Signal Types | 4-20mA, 0-10V, RTD, thermocouple (J/K/T) |
| Isolation | 2300V AC channel-to-channel |
| Dimensions | 250mm × 150mm × 75mm (9.8″ × 5.9″ × 3″) |
| Weight | 1.8 kg (4 lbs) |
Real-World Applications and Compatible Systems
We’ve seen this module hold down the fort in LNG compressor stations where a single sensor glitch could trigger $2M/hour shutdowns. One refinery client actually mounted it directly beside 480V motor drives—no signal drift after 18 months. It slots into any Tricon 3008 or 3009 chassis alongside modules like the 3721 digital output or 3503EC2 analog variants. Honestly? If you’re running a Foxboro I/A system with legacy vibration monitors, this plays nice during upgrades too. Just last month pulled together a package for a paper mill using 3503EC1s with their old Bently Nevada 3300 probes—saved them replacing half the sensor network.
Why It Keeps Running When Others Fail
The magic’s in how it handles chaos. Each channel runs three independent converters voting on readings—so if one fries from a lightning strike, the other two keep the system online. Saw this firsthand during a Texas plant outage where nearby modules died but 3503EC1s kept feeding data. Input isolation isn’t just paperwork; it laughs off 5kV surges that’d kill cheaper cards. And the diagnostics? No guessing games. Front LEDs show exactly which channel’s acting up without pulling the module. Personally, I found the real win is how it talks to older Triconex firmware—no headache upgrading from 3503EC modules. Just drop it in, tweak the config, and you’re done. Redundant power inputs mean even if your 24V supply hiccups during a storm, it keeps logging data. Not flashy, but you’ll sleep better knowing it’s on watch.
