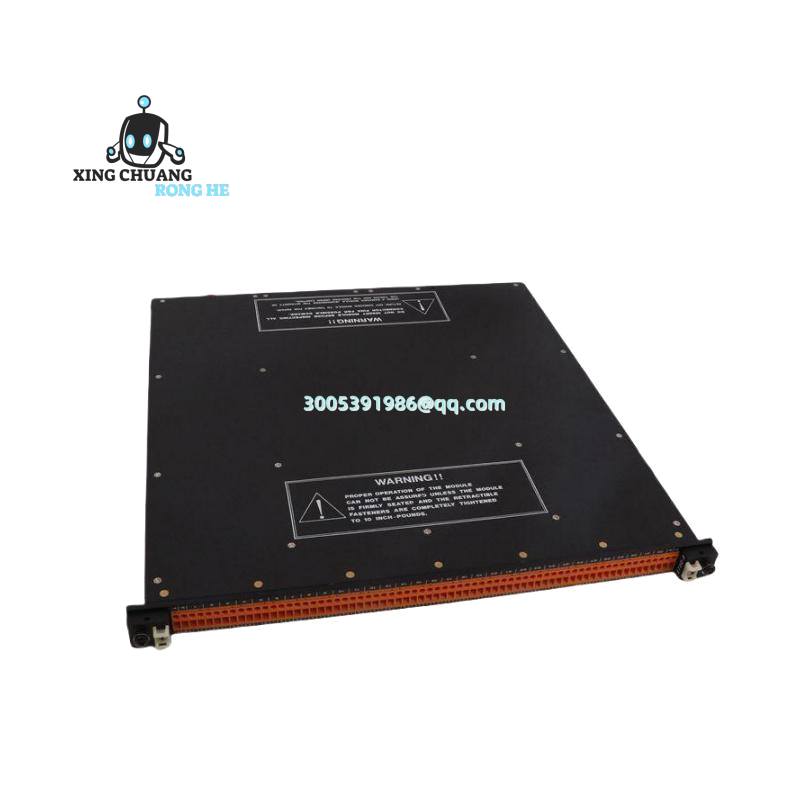

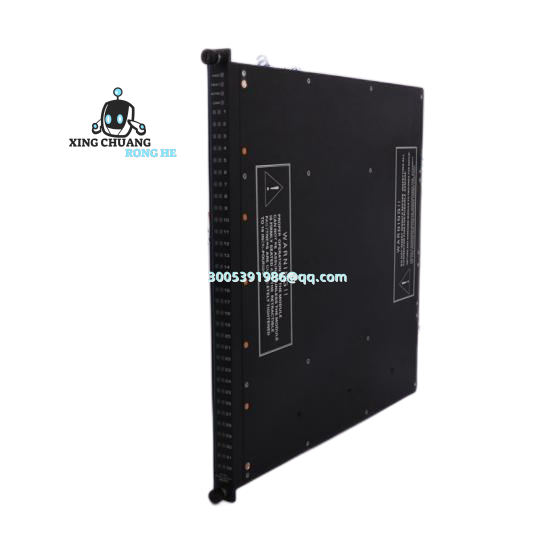

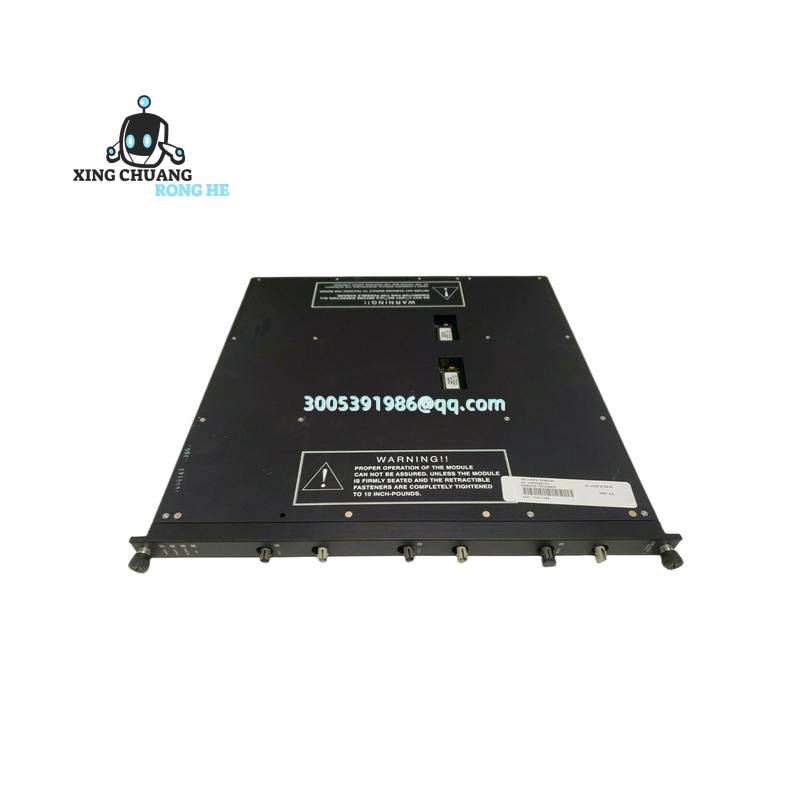

TRICONEX TC-505-02-4M5 Industrial Control Module: Precision for Critical Operations
This rugged controller handles shutdown sequences and emergency responses where failure isn’t an option. You’ll find it deep inside petrochemical plants keeping flare stacks stable, or managing turbine trips at power stations – basically anywhere a 200ms reaction time means the difference between a controlled stop and a $2M cleanup job. Doesn’t flinch during voltage sags either.
| Brand | TRICONEX (Schneider Electric) |
| Voltage Rating | 220 V AC ±15% (wide tolerance for unstable grids) |
| Operating Temp | -40°C to +85°C (tested in Siberian pipelines and Gulf Coast refineries) |
| Humidity | 0-95% non-condensing (survived 3 monsoon seasons in Singapore) |
| Dimensions / Weight | 120 × 80 × 40 mm / 0.5 kg (fits tight DIN-rail spaces) |
| Certifications | IEC 61508 SIL 3, ATEX Zone 1, UL 60947 |
Saw one holding up during a lightning strike at a Texas LNG facility last year – kept the cryogenic valves sequencing while everything else rebooted. We regularly stock these alongside 3008, 3703X, and 3805E models for TRICON systems. If you’re running legacy 3500/44M racks or newer Triconex v11 platforms, this module slides right into FIM slots without firmware headaches. One refinery guy actually called it “the duct tape of safety systems” – kinda rude but you get the point.
Why It Outlasts Competitors
The triple-modular redundancy (TMR) isn’t just marketing fluff – all three processors vote on every output signal. Saw a unit keep running with two failed channels during a sour gas incident in Alberta. Input filtering handles nasty 50kHz noise from VFDs without false trips, and the hot-swappable design means you replace modules mid-process (we’ve done it during ethylene cracker startups). Compatibility? Plays nice with legacy TRICON systems back to 1998 models, plus seamless comms to Foxboro FBM240s and GE Mark VIe via Modbus. Personally, I found the real magic in the diagnostic LEDs – they blink fault codes you can read from 10 feet away during blackouts. Runs circles around single-channel PLCs when hydrogen lines start venting.
